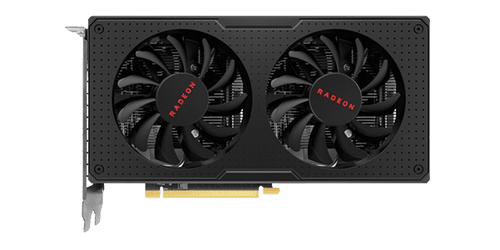

AMD Radeon RX 560 XT
amd
Brand1792
Cores4GB GDDR5
Memory Size1792 : 112 : 32
Shaders/TMUs/ROPs256 Bit
Memory Bus224 GB/s
BandwidthAMD Radeon RX 560 XT
Techinical Specs
Overview
Manufacturer
amd
Release Date
2019
Launch Price
$
GPU Name
Ellesmere
GPU Varient
Polaris 10 LE1
Architecture
GCN 4.0
Foundry
GlobalFoundries
Process Size
14 nm
Transistors
5700 mil
Perofrmance
Pixel Rate
39.23 GPixel/s
Texture Rate
224 GPixel/s
FP16 Performance
4.394 TFLOPS
FP32 Performance
4.394 TFLOPS
FP64 Performance
274.6 GFLOPS
Memory
Memory Size
4 GB
Memory Type
GDDR5
Memory Bus
256 bit
Bandwidth
224 GB/s
Features
DirectX
12
OpenGL
4.6
OpenCL
2.1
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
1792
TMUs
112
ROPs
32
RT Cores
L1 Cache
16 KB
L2 Cache
2.00 MB
Design & Requirements
Memory Size
4 GB
Length
241 mm
Width
0 mm
TDP
150 W
Required PSU
450 W
Connection Outputs
1x 6-pin
Power Connectors
1x HDMI 2.0b, 3x DisplayPort 1.4a
