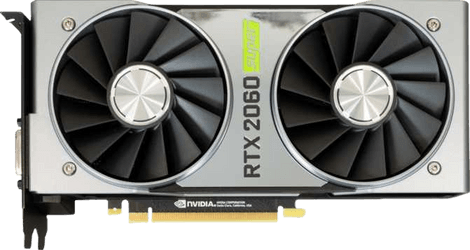

NVIDIA GeForce RTX 2060 SUPER
nvidia
Brand2176
Cores8GB GDDR6
Memory Size2176 : 136 : 64
Shaders/TMUs/ROPs256 Bit
Memory Bus448 GB/s
BandwidthNVIDIA GeForce RTX 2060 SUPER
Techinical Specs
Overview
Manufacturer
nvidia
Release Date
2019
Launch Price
$ 399
GPU Name
TU106
GPU Varient
TU106-410-A1
Architecture
Turing
Foundry
TSMC
Process Size
12 nm
Transistors
10800 mil
Perofrmance
Pixel Rate
105.6 GPixel/s
Texture Rate
448 GPixel/s
FP16 Performance
14.36 TFLOPS
FP32 Performance
7.181 TFLOPS
FP64 Performance
224.4 GFLOPS
Memory
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
256 bit
Bandwidth
448 GB/s
Features
DirectX
12.2
OpenGL
4.6
OpenCL
3
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
2176
TMUs
136
ROPs
64
RT Cores
34
L1 Cache
64 KB
L2 Cache
4.00 MB
Design & Requirements
Memory Size
8 GB
Length
229 mm
Width
113 mm
TDP
175 W
Required PSU
450 W
Connection Outputs
1x 8-pin
Power Connectors
1x DVI, 1x HDMI 2.0, 2x DisplayPort 1.4a, 1x USB Type-C
