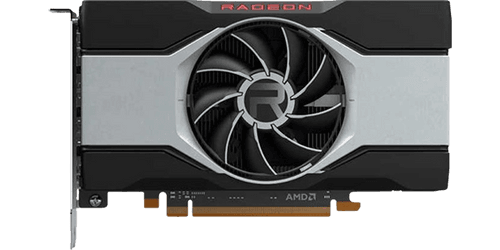

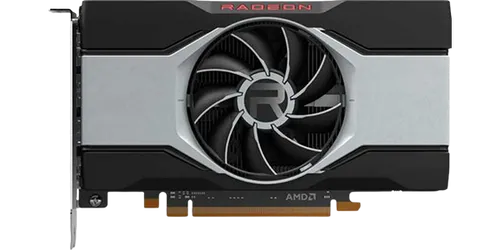

AMD Radeon RX 6600
amd
Brand1792
Cores8GB GDDR6
Memory Size1792 : 112 : 64
Shaders/TMUs/ROPs128 Bit
Memory Bus224 GB/s
BandwidthBest Deals
AMD Radeon RX 6600
Techinical Specs
Overview
Manufacturer
amd
Release Date
2021
Launch Price
$ 329
GPU Name
Navi 23
GPU Varient
Navi 23 XL (215-130000016)
Architecture
RDNA 2.0
Foundry
TSMC
Process Size
7 nm
Transistors
11060 mil
Performace
Pixel Rate
159.4 GPixel/s
Texture Rate
224 GPixel/s
FP16 Performance
17.86 TFLOPS
FP32 Performance
8.928 TFLOPS
FP64 Performance
558 GFLOPS
Memory
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Bandwidth
224 GB/s
Features
DirectX
12.2
OpenGL
4.6
OpenCL
2.1
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
1792
TMUs
112
ROPs
64
RT Cores
28
L1 Cache
128 KB
L2 Cache
2.00 MB
Design & Requirements
Memory Size
8 GB
Length
190 mm
Width
110 mm
TDP
132 W
Required PSU
300 W
Connection Outputs
1x 8-pin
Power Connectors
1x HDMI 2.1, 3x DisplayPort 1.4a
Simillar Performing GPUS
GeForce RTX 3060 12 GB
2021
12 GB
GDDR6
$ 329
Radeon RX 580
2017
8 GB
GDDR5
$ 229
GeForce RTX 3050 8 GB
2022
8 GB
GDDR6
$ 249
Radeon RX 6600 XT
2021
8 GB
GDDR6
$ 379
GeForce RTX 3050 4 GB
2022
4 GB
GDDR6
$ 199
