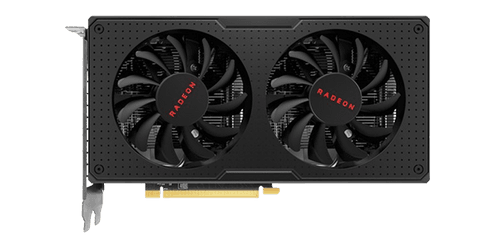

AMD Radeon RX 580
amd
Brand2304
Cores8GB GDDR5
Memory Size2304 : 144 : 32
Shaders/TMUs/ROPs256 Bit
Memory Bus256 GB/s
BandwidthAMD Radeon RX 580
Techinical Specs
Overview
Manufacturer
amd
Release Date
2017
Launch Price
$ 229
GPU Name
Polaris 20
GPU Varient
Polaris 20 XTX (215-0910038)
Architecture
GCN 4.0
Foundry
GlobalFoundries
Process Size
14 nm
Transistors
5700 mil
Perofrmance
Pixel Rate
42.88 GPixel/s
Texture Rate
256 GPixel/s
FP16 Performance
6.175 TFLOPS
FP32 Performance
6.175 TFLOPS
FP64 Performance
385.9 GFLOPS
Memory
Memory Size
8 GB
Memory Type
GDDR5
Memory Bus
256 bit
Bandwidth
256 GB/s
Features
DirectX
12
OpenGL
4.6
OpenCL
2.1
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
2304
TMUs
144
ROPs
32
RT Cores
L1 Cache
16 KB
L2 Cache
2.00 MB
Design & Requirements
Memory Size
8 GB
Length
241 mm
Width
0 mm
TDP
185 W
Required PSU
450 W
Connection Outputs
1x 8-pin
Power Connectors
1x HDMI 2.0b, 3x DisplayPort 1.4a
Simillar Performing GPUS
Radeon RX 6600
2021
8 GB
GDDR6
$ 329
Radeon RX 5500 XT
2019
4 GB
GDDR6
$ 169
Radeon RX 6400
2022
4 GB
GDDR6
$ 159
Radeon R9 280
2014
3 GB
GDDR5
$ 279
Radeon R9 280X
2013
3 GB
GDDR5
$ 299
Performance in Benchmarks
3DMark
Geekbench 5
PassMark
Performance in Games
Baldur's Gate 3
Arcadegeddon
The Lord of the Rings Gollum
Redfall
Call of Duty Black Ops Cold War
Scars Above
No more benchmarks available for this GPU
Performance Review Summary
Generating AI Review...
AMD Radeon RX 580
Graphics Card
$229
PCBench Rating in 2025
Based on comprehensive benchmarks and real-world performance data analyzed by our custom AI algorithm.
AI Summary
The AMD Radeon RX 580 offers 8GB of GDDR5 memory and performs adequately in 1080p gaming with ultra settings on many older titles, averaging 50-90 FPS in games like World War Z and Call of Duty WWII. However, by 2025 standards, its 2017 architecture struggles with modern AAA games at higher resolutions, such as Crysis Remastered and Metro Exodus, where performance drops below playable levels at 1440p and 4K. Considering its age and competition, it's only a viable option for budget builds or light gaming when found at a significant discount.
Pros
- Delivers solid 1080p performance in less demanding or older games, achieving over 60 FPS in titles like Pillars of Eternity II: Deadfire and Sniper Ghost Warrior Contracts 2 at ultra settings.
- Equipped with 8GB of VRAM, which helps avoid texture issues and stuttering in some modern games compared to 4GB alternatives from the same era like the Radeon RX 570.
- Competitive price point of $229 at launch, historically rivaling the GeForce GTX 1060 6 GB in performance when it was new, making it a popular choice for budget builds.
Cons
- By 2025, performance in modern AAA titles is inadequate; averages only 19 FPS in Metro Exodus at 1080p ultra, and struggles to exceed 30 FPS in most recent games.
- Uses outdated GDDR5 memory and PCIe 3.0 interface, limiting data bandwidth compared to newer GDDR6-based GPUs like the Radeon RX 6600 or GeForce RTX 3060.
- High power consumption and heat output for its performance class, with no hardware ray tracing or DLSS-like upscaling support, making it less future-proof compared to modern alternatives.
