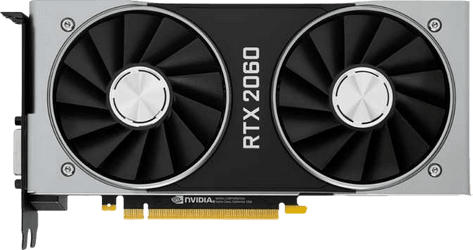

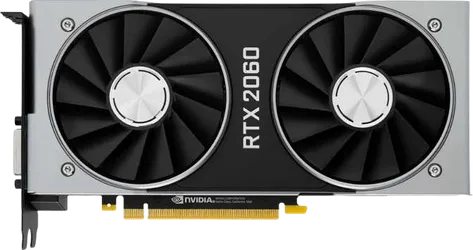

NVIDIA GeForce RTX 2060
nvidia
Brand1920
Cores6GB GDDR6
Memory Size1920 : 120 : 48
Shaders/TMUs/ROPs192 Bit
Memory Bus336 GB/s
BandwidthBest Deals
NVIDIA GeForce RTX 2060
Techinical Specs
Overview
Manufacturer
nvidia
Release Date
2019
Launch Price
$ 349
GPU Name
TU106
GPU Varient
TU106-200A-KA-A1
Architecture
Turing
Foundry
TSMC
Process Size
12 nm
Transistors
10800 mil
Performace
Pixel Rate
80.64 GPixel/s
Texture Rate
336 GPixel/s
FP16 Performance
12.9 TFLOPS
FP32 Performance
6.451 TFLOPS
FP64 Performance
201.6 GFLOPS
Memory
Memory Size
6 GB
Memory Type
GDDR6
Memory Bus
192 bit
Bandwidth
336 GB/s
Features
DirectX
12.2
OpenGL
4.6
OpenCL
3
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
1920
TMUs
120
ROPs
48
RT Cores
30
L1 Cache
64 KB
L2 Cache
3.00 MB
Design & Requirements
Memory Size
6 GB
Length
229 mm
Width
113 mm
TDP
160 W
Required PSU
450 W
Connection Outputs
1x 8-pin
Power Connectors
1x DVI, 1x HDMI 2.0, 2x DisplayPort 1.4a, 1x USB Type-C
Simillar Performing GPUS
GeForce GTX 1660 SUPER
2019
6 GB
GDDR6
$ 229
GeForce RTX 3060 12 GB
2021
12 GB
GDDR6
$ 329
GeForce GTX 1660 Ti
2019
6 GB
GDDR6
$ 279
GeForce RTX 3060 Ti
2020
8 GB
GDDR6
$ 399
Radeon RX 580
2017
8 GB
GDDR5
$ 229
