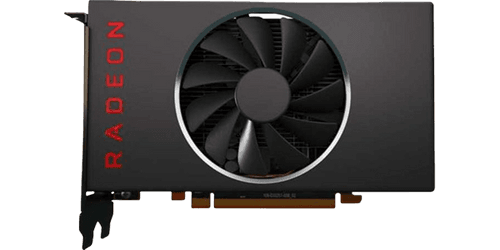

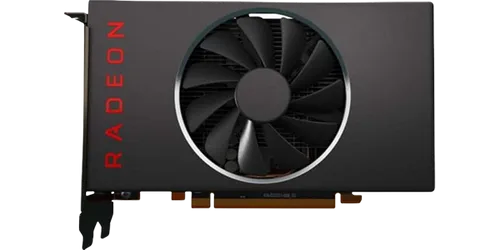

AMD Radeon RX 5500 XT
amd
Brand1408
Cores4GB GDDR6
Memory Size1408 : 88 : 32
Shaders/TMUs/ROPs128 Bit
Memory Bus224 GB/s
BandwidthAMD Radeon RX 5500 XT
Techinical Specs
Overview
Manufacturer
amd
Release Date
2019
Launch Price
$ 169
GPU Name
Navi 14
GPU Varient
Navi 14 XTX (215-0932396)
Architecture
RDNA 1.0
Foundry
TSMC
Process Size
7 nm
Transistors
6400 mil
Perofrmance
Pixel Rate
59.04 GPixel/s
Texture Rate
224 GPixel/s
FP16 Performance
10.39 TFLOPS
FP32 Performance
5.196 TFLOPS
FP64 Performance
324.7 GFLOPS
Memory
Memory Size
4 GB
Memory Type
GDDR6
Memory Bus
128 bit
Bandwidth
224 GB/s
Features
DirectX
12.1
OpenGL
4.6
OpenCL
2.1
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
1408
TMUs
88
ROPs
32
RT Cores
L1 Cache
KB
L2 Cache
2.00 MB
Design & Requirements
Memory Size
4 GB
Length
180 mm
Width
0 mm
TDP
130 W
Required PSU
300 W
Connection Outputs
1x 8-pin
Power Connectors
1x HDMI 2.0b, 3x DisplayPort 1.4a
Simillar Performing GPUS
Radeon RX 590
2018
8 GB
GDDR5
$ 279
Radeon RX 580
2017
8 GB
GDDR5
$ 229

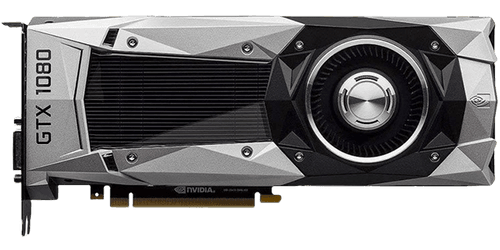

GeForce GTX 1080
