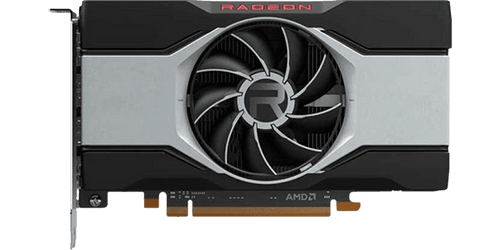

AMD Radeon RX 6500 XT
amd
Brand1024
Cores4GB GDDR6
Memory Size1024 : 64 : 32
Shaders/TMUs/ROPs64 Bit
Memory Bus143.9 GB/s
BandwidthAMD Radeon RX 6500 XT
Techinical Specs
Overview
Manufacturer
amd
Release Date
2022
Launch Price
$ 199
GPU Name
Navi 24
GPU Varient
Navi 24 XT (215-135000006)
Architecture
RDNA 2.0
Foundry
TSMC
Process Size
6 nm
Transistors
5400 mil
Perofrmance
Pixel Rate
90.08 GPixel/s
Texture Rate
143.9 GPixel/s
FP16 Performance
11.53 TFLOPS
FP32 Performance
5.765 TFLOPS
FP64 Performance
360.3 GFLOPS
Memory
Memory Size
4 GB
Memory Type
GDDR6
Memory Bus
64 bit
Bandwidth
143.9 GB/s
Features
DirectX
12.2
OpenGL
4.6
OpenCL
2.2
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
1024
TMUs
64
ROPs
32
RT Cores
16
L1 Cache
128 KB
L2 Cache
1.00 MB
Design & Requirements
Memory Size
4 GB
Length
0 mm
Width
0 mm
TDP
107 W
Required PSU
300 W
Connection Outputs
1x 6-pin
Power Connectors
1x HDMI 2.1, 1x DisplayPort 1.4a
Simillar Performing GPUS
GeForce GTX 1650 SUPER
2019
4 GB
GDDR6
$ 159
GeForce RTX 3050 4 GB
2022
4 GB
GDDR6
$ 199
GeForce RTX 3070
2020
8 GB
GDDR6
$ 499
GeForce RTX 4080 SUPER
2024
16 GB
GDDR6X
$ 999
GeForce RTX 4090
2022
24 GB
GDDR6X
$ 1599
Performance in Benchmarks
3DMark
Geekbench 5
GFXBench
PassMark
Performance in Games
Scars Above
Performance Review Summary
Generating AI Review...
AMD Radeon RX 6500 XT
Graphics Card
$199
PCBench Rating in 2025
Based on comprehensive benchmarks and real-world performance data analyzed by our custom AI algorithm.
AI Summary
The AMD Radeon RX 6500 XT, released in 2022 with a price of $199, struggles to maintain relevance in 2025, hindered by its limited 4GB of GDDR6 memory and relatively low benchmark scores. It may suffice for very basic tasks, but its gaming performance is severely lacking compared to newer cards like the GeForce RTX 4060. It is not recommended for any serious gaming or graphically intensive applications.
Pros
- Relatively low power consumption compared to higher-end GPUs.
- Compact size may fit in smaller form factor PCs.
- Base $199 price is relatively cheap, but overall value is low.
Cons
- Extremely limited 4GB of GDDR6 memory severely bottlenecks performance in newer games and applications.
- Low 3DMark score of 4786 indicates poor performance compared to even older GPUs like the GTX 970 at 3574 or GTX 1060 6GB at 4085.
- The $199 price point does not justify its performance in 2025, as other cards offer significantly better value.
- GFXBench score of 52.4 lags behind many older cards indicating it will struggle with modern titles.
- Passmark score of 9567 is similar to GTX 970, released many years earlier at a price point of $329 indicating extremely poor value.
