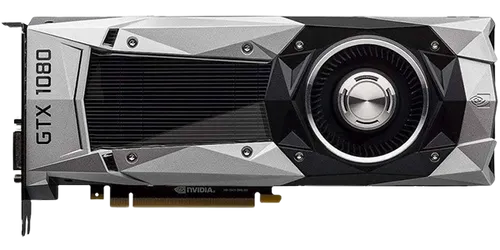

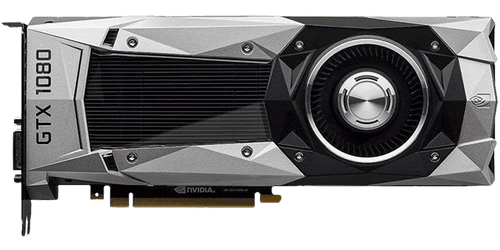

NVIDIA GeForce GTX 1080
nvidia
Brand2560
Cores8GB GDDR5X
Memory Size2560 : 160 : 64
Shaders/TMUs/ROPs256 Bit
Memory Bus320.3 GB/s
BandwidthNVIDIA GeForce GTX 1080
Techinical Specs
Overview
Manufacturer
nvidia
Release Date
2016
Launch Price
$ 599
GPU Name
GP104
GPU Varient
GP104-400-A1
Architecture
Pascal
Foundry
TSMC
Process Size
16 nm
Transistors
7200 mil
Perofrmance
Pixel Rate
110.9 GPixel/s
Texture Rate
320.3 GPixel/s
FP16 Performance
138.6 TFLOPS
FP32 Performance
8.873 TFLOPS
FP64 Performance
277.3 GFLOPS
Memory
Memory Size
8 GB
Memory Type
GDDR5X
Memory Bus
256 bit
Bandwidth
320.3 GB/s
Features
DirectX
12.1
OpenGL
4.6
OpenCL
3
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
2560
TMUs
160
ROPs
64
RT Cores
L1 Cache
48 KB
L2 Cache
2.00 MB
Design & Requirements
Memory Size
8 GB
Length
267 mm
Width
112 mm
TDP
180 W
Required PSU
450 W
Connection Outputs
1x 8-pin
Power Connectors
1x DVI, 1x HDMI 2.0, 3x DisplayPort 1.4a
Simillar Performing GPUS
GeForce RTX 2080 SUPER
2019
8 GB
GDDR6
$ 699
Radeon RX 5500 XT
2019
4 GB
GDDR6
$ 169

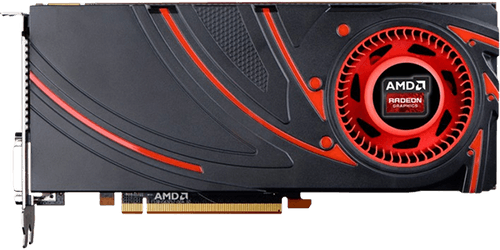

Radeon R9 270X
2013
2 GB
GDDR5
$ 199
GeForce GTX 1050 Ti
2016
4 GB
GDDR5
$ 139
Radeon RX 5600 XT
2020
6 GB
GDDR6
$ 279
Performance in Benchmarks
3DMark
Geekbench 5
GFXBench
PassMark
Performance in Games
Arma Reforger
Baldur's Gate 3
Arcadegeddon
Tom Clancy’s Rainbow Six® Extraction
Far Cry® 6
Evil Dead: The Game
No more benchmarks available for this GPU
Performance Review Summary
Generating AI Review...
NVIDIA GeForce GTX 1080
Graphics Card
$599
PCBench Rating in 2025
Based on comprehensive benchmarks and real-world performance data analyzed by our custom AI algorithm.
AI Summary
The NVIDIA GeForce GTX 1080 is a high-performance graphics card from 2016, offering excellent 1080p and 1440p gaming experiences in modern titles like Mafia II: Definitive Edition and MONSTER HUNTER RISE. However, its performance may not keep up with the latest GeForce RTX 4070 or Radeon RX 7900 XT in 4K resolutions or demanding games.
Pros
- Still capable of high frame rates in 1080p and 1440p for many modern games
- Competitive performance against older high-end GPUs like the GeForce GTX 980 Ti
- Can handle less demanding games at high settings with ease, including Apex Legends and Forza Horizon 4
- Generally more affordable than newer high-end GPUs, making it a budget-friendly option for 1080p gaming
- Wide compatibility with older systems and games
Cons
- May struggle with 4K gaming in demanding titles
- Outperformed by newer models like the GeForce RTX 3070 in terms of performance and power efficiency
- Lacks advanced features like ray tracing and AI-enhanced graphics found in newer GPUs
- Memory bandwidth and capacity may be limiting in very graphics-intensive games
- Older architecture may not support the latest graphics technologies and optimizations
