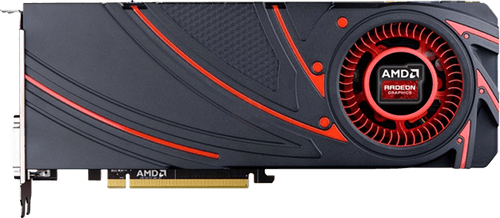

AMD Radeon R9 280X
amd
Brand2048
Cores3GB GDDR5
Memory Size2048 : 128 : 32
Shaders/TMUs/ROPs384 Bit
Memory Bus288 GB/s
BandwidthAMD Radeon R9 280X
Techinical Specs
Overview
Manufacturer
amd
Release Date
2013
Launch Price
$ 299
GPU Name
Tahiti
GPU Varient
Tahiti XTL (215-0821065)
Architecture
GCN 1.0
Foundry
TSMC
Process Size
28 nm
Transistors
4313 mil
Perofrmance
Pixel Rate
32 GPixel/s
Texture Rate
288 GPixel/s
FP16 Performance
TFLOPS
FP32 Performance
4.096 TFLOPS
FP64 Performance
1024 GFLOPS
Memory
Memory Size
3 GB
Memory Type
GDDR5
Memory Bus
384 bit
Bandwidth
288 GB/s
Features
DirectX
11.1
OpenGL
4.6
OpenCL
Vulkan
Shader Model
Render Config
Shading Units
2048
TMUs
128
ROPs
32
RT Cores
L1 Cache
16 KB
L2 Cache
0.75 MB
Design & Requirements
Memory Size
3 GB
Length
275 mm
Width
109 mm
TDP
250 W
Required PSU
600 W
Connection Outputs
1x 6-pin + 1x 8-pin
Power Connectors
2x DVI, 1x HDMI 1.4a, 1x DisplayPort 1.2
