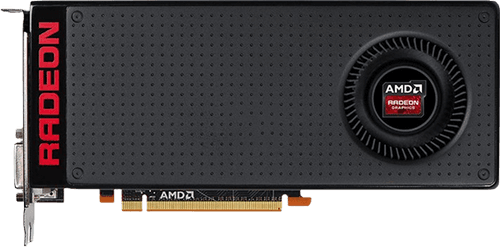

AMD Radeon R9 380
amd
Brand1792
Cores2GB GDDR5
Memory Size1792 : 112 : 32
Shaders/TMUs/ROPs256 Bit
Memory Bus176 GB/s
BandwidthAMD Radeon R9 380
Techinical Specs
Overview
Manufacturer
amd
Release Date
2015
Launch Price
$ 199
GPU Name
Antigua
GPU Varient
Antigua PRO (215-0877000)
Architecture
GCN 3.0
Foundry
TSMC
Process Size
28 nm
Transistors
5000 mil
Perofrmance
Pixel Rate
31.04 GPixel/s
Texture Rate
176 GPixel/s
FP16 Performance
3.476 TFLOPS
FP32 Performance
3.476 TFLOPS
FP64 Performance
217.3 GFLOPS
Memory
Memory Size
2 GB
Memory Type
GDDR5
Memory Bus
256 bit
Bandwidth
176 GB/s
Features
DirectX
12
OpenGL
4.6
OpenCL
2.1
Vulkan
Shader Model
6.5
Render Config
Shading Units
1792
TMUs
112
ROPs
32
RT Cores
L1 Cache
16 KB
L2 Cache
0.50 MB
Design & Requirements
Memory Size
2 GB
Length
221 mm
Width
111 mm
TDP
190 W
Required PSU
450 W
Connection Outputs
2x 6-pin
Power Connectors
2x DVI, 1x HDMI 1.4a, 1x DisplayPort 1.2
