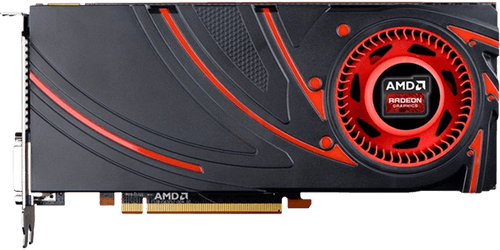

AMD Radeon R9 270X
amd
Brand1280
Cores2GB GDDR5
Memory Size1280 : 80 : 32
Shaders/TMUs/ROPs256 Bit
Memory Bus179.2 GB/s
BandwidthAMD Radeon R9 270X
Techinical Specs
Overview
Manufacturer
amd
Release Date
2013
Launch Price
$ 199
GPU Name
Curacao
GPU Varient
Curacao XT (215-0848004)
Architecture
GCN 1.0
Foundry
TSMC
Process Size
28 nm
Transistors
2800 mil
Perofrmance
Pixel Rate
33.6 GPixel/s
Texture Rate
179.2 GPixel/s
FP16 Performance
TFLOPS
FP32 Performance
2.688 TFLOPS
FP64 Performance
168 GFLOPS
Memory
Memory Size
2 GB
Memory Type
GDDR5
Memory Bus
256 bit
Bandwidth
179.2 GB/s
Features
DirectX
11.1
OpenGL
4.6
OpenCL
Vulkan
Shader Model
Render Config
Shading Units
1280
TMUs
80
ROPs
32
RT Cores
L1 Cache
16 KB
L2 Cache
0.50 MB
Design & Requirements
Memory Size
2 GB
Length
241 mm
Width
109 mm
TDP
180 W
Required PSU
450 W
Connection Outputs
2x 6-pin
Power Connectors
2x DVI, 1x HDMI 1.4a, 1x DisplayPort 1.2
