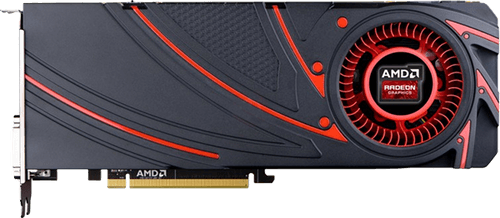

AMD Radeon R9 280
amd
Brand1792
Cores3GB GDDR5
Memory Size1792 : 112 : 32
Shaders/TMUs/ROPs384 Bit
Memory Bus240 GB/s
BandwidthAMD Radeon R9 280
Techinical Specs
Overview
Manufacturer
amd
Release Date
2014
Launch Price
$ 279
GPU Name
Tahiti
GPU Varient
Tahiti PRO3 (215-0821330)
Architecture
GCN 1.0
Foundry
TSMC
Process Size
28 nm
Transistors
4313 mil
Perofrmance
Pixel Rate
29.86 GPixel/s
Texture Rate
240 GPixel/s
FP16 Performance
TFLOPS
FP32 Performance
3.344 TFLOPS
FP64 Performance
836 GFLOPS
Memory
Memory Size
3 GB
Memory Type
GDDR5
Memory Bus
384 bit
Bandwidth
240 GB/s
Features
DirectX
11.1
OpenGL
4.6
OpenCL
Vulkan
Shader Model
Render Config
Shading Units
1792
TMUs
112
ROPs
32
RT Cores
L1 Cache
16 KB
L2 Cache
0.75 MB
Design & Requirements
Memory Size
3 GB
Length
275 mm
Width
109 mm
TDP
200 W
Required PSU
550 W
Connection Outputs
1x 6-pin + 1x 8-pin
Power Connectors
1x DVI, 2x HDMI 1.4a, 1x DisplayPort 1.2
