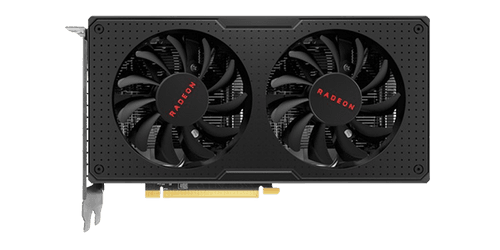

AMD Radeon RX 560X
amd
Brand1024
Cores4GB GDDR5
Memory Size1024 : 64 : 16
Shaders/TMUs/ROPs128 Bit
Memory Bus112 GB/s
BandwidthAMD Radeon RX 560X
Techinical Specs
Overview
Manufacturer
amd
Release Date
2018
Launch Price
$
GPU Name
Polaris 21
GPU Varient
Polaris 21 XT (215-0908004)
Architecture
GCN 4.0
Foundry
GlobalFoundries
Process Size
14 nm
Transistors
3000 mil
Perofrmance
Pixel Rate
20.4 GPixel/s
Texture Rate
112 GPixel/s
FP16 Performance
2.611 TFLOPS
FP32 Performance
2.611 TFLOPS
FP64 Performance
163.2 GFLOPS
Memory
Memory Size
4 GB
Memory Type
GDDR5
Memory Bus
128 bit
Bandwidth
112 GB/s
Features
DirectX
12
OpenGL
4.6
OpenCL
2.1
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
1024
TMUs
64
ROPs
16
RT Cores
L1 Cache
16 KB
L2 Cache
1.00 MB
Design & Requirements
Memory Size
4 GB
Length
170 mm
Width
0 mm
TDP
75 W
Required PSU
250 W
Connection Outputs
None
Power Connectors
1x DVI, 1x HDMI 2.0b, 1x DisplayPort 1.4a
Simillar Performing GPUS
GeForce RTX 2060 SUPER
2019
8 GB
GDDR6
$ 399
Radeon RX 460
2016
2 GB
GDDR5
N/A
GeForce GTX 950
2015
2 GB
GDDR5
$ 159
Radeon RX 590
2018
8 GB
GDDR5
$ 279
GeForce GTX 750
2014
1 GB
GDDR5
$ 119
