amd
Brand4GB GDDR5
Memory1024
Cores112 GB/s
BandwidthAMD Radeon RX 560X
amd
Brand2GB GDDR5
Memory512
Cores112 GB/s
BandwidthAMD Radeon RX 550
AMD Radeon RX 560X
Radeon RX 560X
$ • Apr 2018
Radeon RX 550
$79 • Apr 2017
AMD Radeon RX 550
Specs Comparison
| Specification | AMD Radeon RX 560X | AMD Radeon RX 550 |
|---|---|---|
| Memory Size | 4 GB | 2 GB |
| Memory Type | GDDR5 | GDDR5 |
| TDP | 75 W | 50 W |
| Core Clock | N/A | N/A |
| Boost Clock | 1275 MHz | 1183 MHz |
| Memory Bandwidth | 112 GB/s | 112 GB/s |
| Process Size | 14nm | 14nm |
| Architecture | GCN 4.0 | GCN 4.0 |
| Shading Units | 1024 | 512 |
| RT Cores | N/A | N/A |
| TMUs | 64 | 32 |
| ROPs | 16 | 16 |
| Memory Bus | 128-bit | 128-bit |
| Memory Clock | 1750 MHz | 1750 MHz |
| Pixel Rate | 20.4 GPixel/s | 18.93 GPixel/s |
| Texture Rate | 112 GTexel/s | 112 GTexel/s |
| FP32 Performance | 2.611 GFLOPS | 1 GFLOPS |
| L2 Cache | 1.00 MB | 0.50 MB |
| Die Size | 123 mm² | 103 mm² |
| Transistors | 3000 Million | 2200 Million |
| Required PSU | 250 W | 250 W |
| Power Connectors | None | None |
| Bus Interface | PCIe 3.0 x8 | PCIe 3.0 x8 |
| DirectX | 12 | 12 |
| Vulkan | 1.3 | 1.3 |
| OpenGL | 4.6 | 4.6 |
| Foundry | GlobalFoundries | GlobalFoundries |
Comparison in Synthetic Benchmarks
3DMark Time Spy
Synthetic DirectX 12 benchmark that measures GPU performance in gaming workloads
Graphics Score
AMD Radeon RX 560X
AMD Radeon RX 550
Geekbench 6
Cross-platform benchmark that measures GPU compute performance using OpenCL and Metal APIs
OpenCL Score
AMD Radeon RX 560X
AMD Radeon RX 550
GFXBench 5.0
Cross-platform 3D graphics benchmark suite that measures GPU performance across different APIs
Aztec Ruins High (FPS)
AMD Radeon RX 560X
AMD Radeon RX 550
PassMark G2D
Comprehensive 2D graphics benchmark that measures GPU performance in various graphics operations
G2D Mark
AMD Radeon RX 560X
AMD Radeon RX 550
Game Benchmarks Comparison
No game benchmarks available for this combination of GPUs yet.
We're working on collecting performance data for this combination of GPUs. Please check back later.
AMD Radeon RX 560X Wins!
Based on 4 synthetic benchmarks
AMD Radeon RX 560X
AMD • 4GB GDDR5

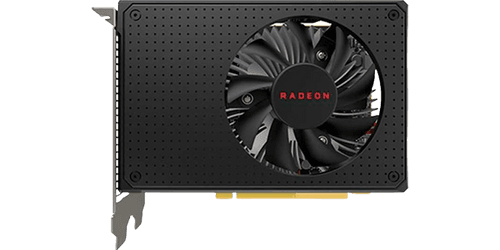

AMD Radeon RX 550
AMD • 2GB GDDR5
