AMD Radeon RX 550
amd
Brand512
Cores2GB GDDR5
Memory Size512 : 32 : 16
Shaders/TMUs/ROPs128 Bit
Memory Bus112 GB/s
BandwidthAMD Radeon RX 550
Techinical Specs
Overview
Manufacturer
amd
Release Date
2017
Launch Price
$ 79
GPU Name
Lexa
GPU Varient
Lexa PRO (215-0904018)
Architecture
GCN 4.0
Foundry
GlobalFoundries
Process Size
14 nm
Transistors
2200 mil
Perofrmance
Pixel Rate
18.93 GPixel/s
Texture Rate
112 GPixel/s
FP16 Performance
1 TFLOPS
FP32 Performance
1 TFLOPS
FP64 Performance
75.71 GFLOPS
Memory
Memory Size
2 GB
Memory Type
GDDR5
Memory Bus
128 bit
Bandwidth
112 GB/s
Features
DirectX
12
OpenGL
4.6
OpenCL
2.1
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
512
TMUs
32
ROPs
16
RT Cores
L1 Cache
16 KB
L2 Cache
0.50 MB
Design & Requirements
Memory Size
2 GB
Length
145 mm
Width
0 mm
TDP
50 W
Required PSU
250 W
Connection Outputs
None
Power Connectors
1x DVI, 1x HDMI 2.0b, 1x DisplayPort 1.4a
Simillar Performing GPUS
GeForce GTX 750 Ti
2014
2 GB
GDDR5
$ 149
Radeon HD 7750
2012
1 GB
GDDR5
$ 109

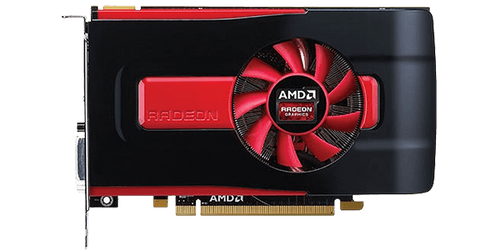

Radeon HD 7790
2013
1 GB
GDDR5
$ 149
GeForce GTX 750
2014
1 GB
GDDR5
$ 119
Radeon RX 460
2016
2 GB
GDDR5
N/A
