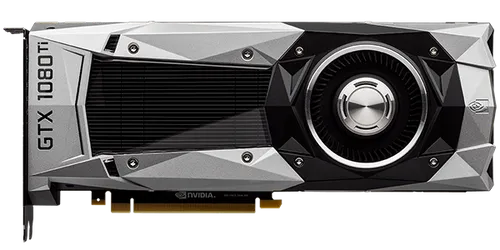

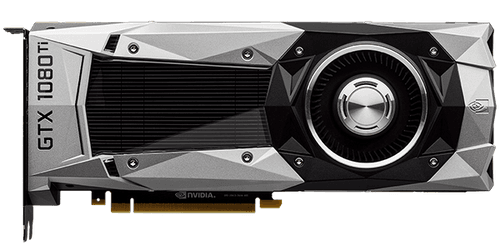

NVIDIA GeForce GTX 1080 Ti
nvidia
Brand3584
Cores11GB GDDR5X
Memory Size3584 : 224 : 88
Shaders/TMUs/ROPs352 Bit
Memory Bus484.4 GB/s
BandwidthNVIDIA GeForce GTX 1080 Ti
Techinical Specs
Overview
Manufacturer
nvidia
Release Date
2017
Launch Price
$ 699
GPU Name
GP102
GPU Varient
GP102-350-K1-A1
Architecture
Pascal
Foundry
TSMC
Process Size
16 nm
Transistors
11800 mil
Perofrmance
Pixel Rate
139.2 GPixel/s
Texture Rate
484.4 GPixel/s
FP16 Performance
177.2 TFLOPS
FP32 Performance
11.34 TFLOPS
FP64 Performance
354.4 GFLOPS
Memory
Memory Size
11 GB
Memory Type
GDDR5X
Memory Bus
352 bit
Bandwidth
484.4 GB/s
Features
DirectX
12.1
OpenGL
4.6
OpenCL
3
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
3584
TMUs
224
ROPs
88
RT Cores
L1 Cache
48 KB
L2 Cache
2.75 MB
Design & Requirements
Memory Size
11 GB
Length
267 mm
Width
112 mm
TDP
250 W
Required PSU
600 W
Connection Outputs
1x 6-pin + 1x 8-pin
Power Connectors
1x HDMI 2.0, 3x DisplayPort 1.4a
Simillar Performing GPUS
GeForce RTX 3080
2020
10 GB
GDDR6X
$ 699
Radeon RX 5700 XT
2019
8 GB
GDDR6
$ 399
GeForce GTX 1070 Ti
2017
8 GB
GDDR5
$ 399
GeForce RTX 3090 Ti
2022
24 GB
GDDR6X
$ 1999
Radeon RX Vega 56
2017
8 GB
HBM2
$ 399
Performance in Benchmarks
3DMark
Geekbench 5
GFXBench
PassMark
