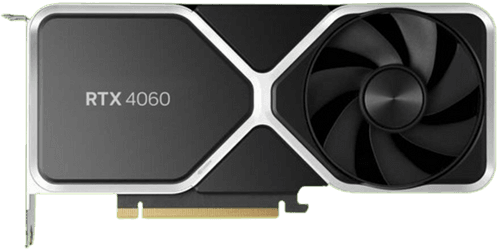

NVIDIA GeForce RTX 4060
nvidia
Brand3072
Cores8GB GDDR6
Memory Size3072 : 96 : 48
Shaders/TMUs/ROPs128 Bit
Memory Bus272 GB/s
BandwidthNVIDIA GeForce RTX 4060
Techinical Specs
Overview
Manufacturer
nvidia
Release Date
2023
Launch Price
$ 299
GPU Name
AD107
GPU Varient
AD107-400-A1
Architecture
Ada Lovelace
Foundry
TSMC
Process Size
5 nm
Transistors
18900 mil
Perofrmance
Pixel Rate
118.1 GPixel/s
Texture Rate
272 GPixel/s
FP16 Performance
15.11 TFLOPS
FP32 Performance
15.11 TFLOPS
FP64 Performance
236.2 GFLOPS
Memory
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Bandwidth
272 GB/s
Features
DirectX
12.2
OpenGL
4.6
OpenCL
3
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
3072
TMUs
96
ROPs
48
RT Cores
24
L1 Cache
128 KB
L2 Cache
24.00 MB
Design & Requirements
Memory Size
8 GB
Length
240 mm
Width
111 mm
TDP
115 W
Required PSU
300 W
Connection Outputs
1x 12-pin
Power Connectors
1x HDMI 2.1, 3x DisplayPort 1.4a
Simillar Performing GPUS
GeForce GTX 1080 Ti
2017
11 GB
GDDR5X
$ 699

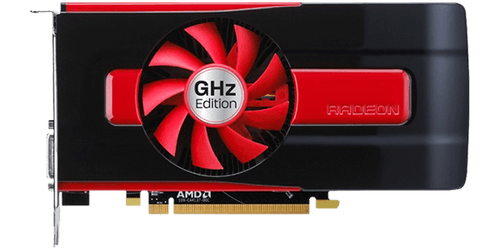

Radeon HD 7770 GHz Edition
2012
1 GB
GDDR5
$ 159
Radeon HD 7990
2013
3 GB
GDDR5
$ 999
Radeon RX 6750 XT
2022
12 GB
GDDR6
$ 549
GeForce RTX 3060 12 GB
2021
12 GB
GDDR6
$ 329
Performance in Benchmarks
3DMark
Geekbench 5
GFXBench
PassMark
Performance in Games
Baldur's Gate 3
Ratchet & Clank: Rift Apart
The Last of Us™ Part I
Assassin's Creed Valhalla
DOOM Eternal
No more benchmarks available for this GPU
Performance Review Summary
Generating AI Review...
NVIDIA GeForce RTX 4060
Graphics Card
$299
PCBench Rating in 2025
Based on comprehensive benchmarks and real-world performance data analyzed by our custom AI algorithm.
AI Summary
The NVIDIA GeForce RTX 4060 offers competitive performance for 1080p and 1440p gaming, with average FPS ranges of 57-103 in games like The Last of Us Part I and Assassin's Creed Valhalla. While it may not match the performance of higher-end GPUs like the GeForce RTX 4070, its price point of $299 makes it an attractive option for budget-conscious gamers. However, those seeking 2160p performance or ray tracing capabilities may want to consider more powerful alternatives like the GeForce RTX 4070 Ti.
Pros
- Competitive performance for 1080p and 1440p gaming, with average FPS ranges of 57-103 in popular titles
- Affordable price point of $299, making it an attractive option for budget-conscious gamers
- Supports ray tracing and other advanced graphics features, albeit with some performance compromises
- Power-efficient design with a relatively low TDP
- Compatible with a wide range of games and applications, including Ratchet & Clank: Rift Apart and DOOM Eternal
Cons
- May struggle with 2160p gaming, with average FPS ranges of 20-40 in demanding titles
- Ray tracing performance can be limited, especially at higher resolutions
- Not as powerful as higher-end GPUs like the GeForce RTX 4070 or GeForce RTX 4080
- Limited overclocking headroom due to power and thermal constraints
- May not be the best option for future-proofing, given the rapid pace of GPU advancements
