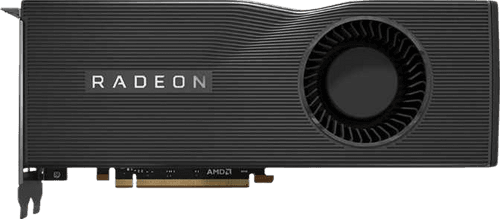

AMD Radeon RX 5700 XT
amd
Brand2560
Cores8GB GDDR6
Memory Size2560 : 160 : 64
Shaders/TMUs/ROPs256 Bit
Memory Bus448 GB/s
BandwidthAMD Radeon RX 5700 XT
Techinical Specs
Overview
Manufacturer
amd
Release Date
2019
Launch Price
$ 399
GPU Name
Navi 10
GPU Varient
Navi 10 XT (215-0917210)
Architecture
RDNA 1.0
Foundry
TSMC
Process Size
7 nm
Transistors
10300 mil
Perofrmance
Pixel Rate
121.9 GPixel/s
Texture Rate
448 GPixel/s
FP16 Performance
19.51 TFLOPS
FP32 Performance
9.754 TFLOPS
FP64 Performance
609.6 GFLOPS
Memory
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
256 bit
Bandwidth
448 GB/s
Features
DirectX
12.1
OpenGL
4.6
OpenCL
2.1
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
2560
TMUs
160
ROPs
64
RT Cores
L1 Cache
KB
L2 Cache
4.00 MB
Design & Requirements
Memory Size
8 GB
Length
272 mm
Width
111 mm
TDP
225 W
Required PSU
550 W
Connection Outputs
1x 6-pin + 1x 8-pin
Power Connectors
1x HDMI 2.0b, 3x DisplayPort 1.4a
Simillar Performing GPUS
GeForce RTX 3060 12 GB
2021
12 GB
GDDR6
$ 329
GeForce GTX 1080 Ti
2017
11 GB
GDDR5X
$ 699
GeForce RTX 3050 8 GB
2022
8 GB
GDDR6
$ 249
Radeon RX 6600 XT
2021
8 GB
GDDR6
$ 379
Radeon RX 7600 XT
2024
16 GB
GDDR6
$ 329
Performance in Benchmarks
3DMark
Geekbench 5
GFXBench
PassMark
Performance in Games
Arma Reforger
Baldur's Gate 3
Arcadegeddon
Tom Clancy’s Rainbow Six Extraction
The Lord of the Rings Gollum
Far Cry 6
No more benchmarks available for this GPU
Performance Review Summary
Generating AI Review...
AMD Radeon RX 5700 XT
Graphics Card
$399
PCBench Rating in 2025
Based on comprehensive benchmarks and real-world performance data analyzed by our custom AI algorithm.
AI Summary
The AMD Radeon RX 5700 XT is a powerful GPU that offers excellent performance for 1440p and 1080p gaming, with average FPS rates of 51.0 and 89.0 respectively in games like Arcadegeddon and Borderlands 3. Compared to its competitors like the GeForce GTX 1070 and GeForce RTX 2060, the RX 5700 XT provides competitive performance at a similar price point. However, it may struggle with 4K gaming and demanding titles like Crysis 2 Remastered.
Pros
- Excellent performance for 1440p and 1080p gaming, with average FPS rates of 51.0 and 89.0 respectively in games like Arcadegeddon and Borderlands 3
- Competitive performance compared to the GeForce GTX 1070 and GeForce RTX 2060 at a similar price point
- 8GB of GDDR6 memory provides ample capacity for most modern games and applications
Cons
- May struggle with 4K gaming and demanding titles like Crysis 2 Remastered, with average FPS rates of 21.0 and 4.0 respectively
- Power consumption is relatively high, which may increase electricity costs and require a more powerful power supply
- As a 2019 GPU, it may not support the latest graphics technologies and features, such as ray tracing and DLSS, found in more modern GPUs like the GeForce RTX 3070
