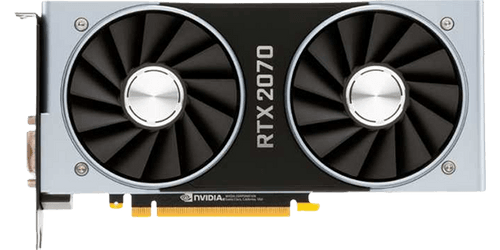

NVIDIA GeForce RTX 2070
nvidia
Brand2304
Cores8GB GDDR6
Memory Size2304 : 144 : 64
Shaders/TMUs/ROPs256 Bit
Memory Bus448 GB/s
BandwidthNVIDIA GeForce RTX 2070
Techinical Specs
Overview
Manufacturer
nvidia
Release Date
2018
Launch Price
$ 499
GPU Name
TU106
GPU Varient
TU106-400A-A1
Architecture
Turing
Foundry
TSMC
Process Size
12 nm
Transistors
10800 mil
Perofrmance
Pixel Rate
103.7 GPixel/s
Texture Rate
448 GPixel/s
FP16 Performance
14.93 TFLOPS
FP32 Performance
7.465 TFLOPS
FP64 Performance
233.3 GFLOPS
Memory
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
256 bit
Bandwidth
448 GB/s
Features
DirectX
12.2
OpenGL
4.6
OpenCL
3
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
2304
TMUs
144
ROPs
64
RT Cores
36
L1 Cache
64 KB
L2 Cache
4.00 MB
Design & Requirements
Memory Size
8 GB
Length
229 mm
Width
113 mm
TDP
175 W
Required PSU
450 W
Connection Outputs
1x 8-pin
Power Connectors
1x DVI, 1x HDMI 2.0, 2x DisplayPort 1.4a, 1x USB Type-C
Simillar Performing GPUS
Radeon RX 5700 XT
2019
8 GB
GDDR6
$ 399
GeForce GTX 1660
2019
6 GB
GDDR5
$ 219
GeForce RTX 4070
2023
12 GB
GDDR6X
$ 599
GeForce RTX 2070 SUPER
2019
8 GB
GDDR6
$ 499
Radeon RX 6950 XT
2022
16 GB
GDDR6
$ 1099
