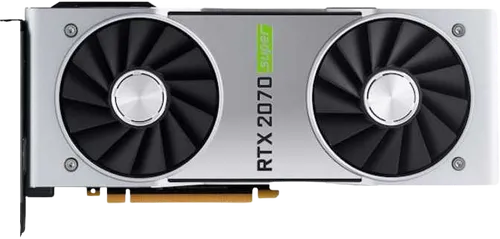

NVIDIA GeForce RTX 2070 SUPER
nvidia
Brand2560
Cores8GB GDDR6
Memory Size2560 : 160 : 64
Shaders/TMUs/ROPs256 Bit
Memory Bus448 GB/s
BandwidthNVIDIA GeForce RTX 2070 SUPER
Techinical Specs
Overview
Manufacturer
nvidia
Release Date
2019
Launch Price
$ 499
GPU Name
TU104
GPU Varient
TU104-410-A1
Architecture
Turing
Foundry
TSMC
Process Size
12 nm
Transistors
13600 mil
Perofrmance
Pixel Rate
113.3 GPixel/s
Texture Rate
448 GPixel/s
FP16 Performance
18.12 TFLOPS
FP32 Performance
9.062 TFLOPS
FP64 Performance
283.2 GFLOPS
Memory
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
256 bit
Bandwidth
448 GB/s
Features
DirectX
12.2
OpenGL
4.6
OpenCL
3
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
2560
TMUs
160
ROPs
64
RT Cores
40
L1 Cache
64 KB
L2 Cache
4.00 MB
Design & Requirements
Memory Size
8 GB
Length
267 mm
Width
116 mm
TDP
215 W
Required PSU
550 W
Connection Outputs
1x 6-pin + 1x 8-pin
Power Connectors
1x HDMI 2.0, 3x DisplayPort 1.4a, 1x USB Type-C
Simillar Performing GPUS
GeForce RTX 4060 Ti
2023
8 GB
GDDR6
$ 499
GeForce RTX 3060 12 GB
2021
12 GB
GDDR6
$ 329
Radeon RX 6950 XT
2022
16 GB
GDDR6
$ 1099
Radeon RX 6900 XT
2020
16 GB
GDDR6
$ 999
Radeon RX 6800 XT
2020
16 GB
GDDR6
$ 649
Performance in Benchmarks
3DMark
Geekbench 5
GFXBench
PassMark
Performance in Games
FINAL FANTASY XVI
Arma Reforger
Cities: Skylines II
Assassin's Creed Mirage
Diablo® IV
Lords of the Fallen
No more benchmarks available for this GPU
Performance Review Summary
Generating AI Review...

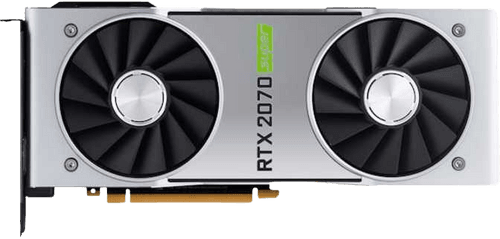

NVIDIA GeForce RTX 2070 SUPER
Graphics Card
$499
PCBench Rating in 2025
Based on comprehensive benchmarks and real-world performance data analyzed by our custom AI algorithm.
AI Summary
The NVIDIA GeForce RTX 2070 SUPER is a powerful GPU that offers excellent performance for 1440p and 4K gaming, with features like ray tracing and DLSS. It competes closely with the GeForce RTX 2080 and is a significant upgrade over the GeForce RTX 2060. For games like Tom Clancy’s Rainbow Six Extraction and ELDEN RING, it provides smooth gameplay at high settings. However, its price and power consumption may be a concern for some users.
Pros
- Excellent performance for 1440p and 4K gaming
- Supports ray tracing and DLSS for enhanced visuals
- Competes closely with higher-end GPUs like the GeForce RTX 2080
- 8GB of GDDR6 memory provides ample storage for graphics data
- Scores well in benchmarks like Forza Horizon 4 and STAR WARS: Squadrons
Cons
- Priced at $499, which may be steep for some budgets
- Power consumption is higher than some competing GPUs
- May not be the best choice for games that heavily utilize ray tracing, like Cyberpunk 2077
- Limited upgrade options compared to newer GPU models like the GeForce RTX 4070
- Released in 2019, which may make it less relevant in 2025
