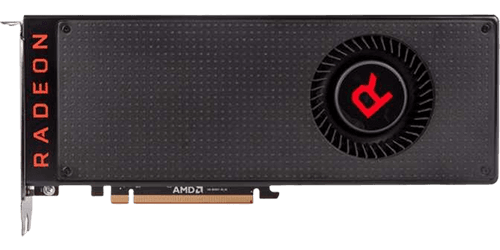

AMD Radeon RX Vega 56
amd
Brand3584
Cores8GB HBM2
Memory Size3584 : 224 : 64
Shaders/TMUs/ROPs2048 Bit
Memory Bus409.6 GB/s
BandwidthAMD Radeon RX Vega 56
Techinical Specs
Overview
Manufacturer
amd
Release Date
2017
Launch Price
$ 399
GPU Name
Vega 10
GPU Varient
Vega 10 XL (215-0894216)
Architecture
GCN 5.0
Foundry
GlobalFoundries
Process Size
14 nm
Transistors
12500 mil
Perofrmance
Pixel Rate
94.14 GPixel/s
Texture Rate
409.6 GPixel/s
FP16 Performance
21.09 TFLOPS
FP32 Performance
10.54 TFLOPS
FP64 Performance
659 GFLOPS
Memory
Memory Size
8 GB
Memory Type
HBM2
Memory Bus
2048 bit
Bandwidth
409.6 GB/s
Features
DirectX
12.1
OpenGL
4.6
OpenCL
2.1
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
3584
TMUs
224
ROPs
64
RT Cores
L1 Cache
16 KB
L2 Cache
4.00 MB
Design & Requirements
Memory Size
8 GB
Length
280 mm
Width
111 mm
TDP
210 W
Required PSU
550 W
Connection Outputs
2x 8-pin
Power Connectors
1x HDMI 2.0b, 3x DisplayPort 1.4a
Simillar Performing GPUS
GeForce GTX 1080 Ti
2017
11 GB
GDDR5X
$ 699
Radeon RX Vega 64
2017
8 GB
HBM2
$ 499
GeForce RTX 4060
2023
8 GB
GDDR6
$ 299
Radeon HD 7990
2013
3 GB
GDDR5
$ 999
GeForce GTX 1650
2019
4 GB
GDDR5
$ 149
Performance in Benchmarks
3DMark
Geekbench 5
GFXBench
PassMark
Performance in Games
Arma Reforger
Baldur's Gate 3
Arcadegeddon
Tom Clancy’s Rainbow Six® Extraction
Far Cry® 6
Evil Dead: The Game
No more benchmarks available for this GPU
