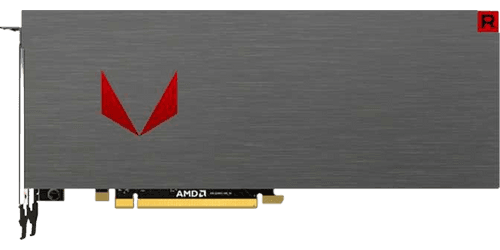

AMD Radeon RX Vega 64
amd
Brand4096
Cores8GB HBM2
Memory Size4096 : 256 : 64
Shaders/TMUs/ROPs2048 Bit
Memory Bus483.8 GB/s
BandwidthAMD Radeon RX Vega 64
Techinical Specs
Overview
Manufacturer
amd
Release Date
2017
Launch Price
$ 499
GPU Name
Vega 10
GPU Varient
Vega 10 XT (215-0894200)
Architecture
GCN 5.0
Foundry
GlobalFoundries
Process Size
14 nm
Transistors
12500 mil
Perofrmance
Pixel Rate
98.94 GPixel/s
Texture Rate
483.8 GPixel/s
FP16 Performance
25.33 TFLOPS
FP32 Performance
12.66 TFLOPS
FP64 Performance
791.6 GFLOPS
Memory
Memory Size
8 GB
Memory Type
HBM2
Memory Bus
2048 bit
Bandwidth
483.8 GB/s
Features
DirectX
12.1
OpenGL
4.6
OpenCL
2.1
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
4096
TMUs
256
ROPs
64
RT Cores
L1 Cache
16 KB
L2 Cache
4.00 MB
Design & Requirements
Memory Size
8 GB
Length
280 mm
Width
111 mm
TDP
295 W
Required PSU
600 W
Connection Outputs
2x 8-pin
Power Connectors
1x HDMI 2.0b, 3x DisplayPort 1.4a
Simillar Performing GPUS
GeForce GTX 1080 Ti
2017
11 GB
GDDR5X
$ 699
Radeon RX 5600 XT
2020
6 GB
GDDR6
$ 279
GeForce GTX 1660
2019
6 GB
GDDR5
$ 219
Radeon RX Vega 56
2017
8 GB
HBM2
$ 399
GeForce GTX 980
2014
4 GB
GDDR5
$ 549
Performance in Benchmarks
3DMark
Geekbench 5
GFXBench
PassMark
Performance in Games
Arma Reforger
Baldur's Gate 3
Arcadegeddon
Tom Clancy’s Rainbow Six Extraction
The Lord of the Rings Gollum
Far Cry 6
No more benchmarks available for this GPU
Performance Review Summary
Generating AI Review...
AMD Radeon RX Vega 64
Graphics Card
$499
PCBench Rating in 2025
Based on comprehensive benchmarks and real-world performance data analyzed by our custom AI algorithm.
AI Summary
The AMD Radeon RX Vega 64 struggles to deliver competitive 4K performance in modern titles, averaging only 26 FPS in Marvel's Avengers. While it manages solid 1080p and 1440p performance in many games, its value is limited in 2025 when compared to modern alternatives like the Radeon RX 6700 XT and GeForce RTX 3060 Ti, which offer better efficiency and performance at similar or lower prices.
Pros
- Delivers 100+ FPS at 1080p ultra in many modern games like World War Z and Far Cry® 5.
- Features 8GB of HBM2 memory, which provides high bandwidth and better handling of memory-intensive textures at high resolutions.
- Performs competitively with the GeForce GTX 1080 and slightly ahead of the Radeon RX Vega 56 in synthetic benchmarks like 3DMark and Passmark.
Cons
- Underperforms at 4K resolution, with average frame rates below 30 FPS in demanding titles like Marvel's Avengers and Metro Exodus.
- High power consumption and heat output due to the 295W TDP, requiring robust cooling and not energy efficient compared to modern GPUs.
- Launched at $499, it's now outdated in 2025 and offers poor value compared to newer mid-range cards like the Radeon RX 6600, which provide similar or better 1080p performance at lower cost and power use.
