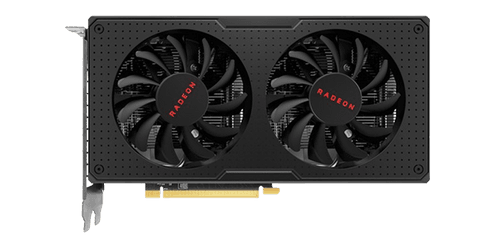

AMD Radeon RX 580X
amd
Brand2304
Cores8GB GDDR5
Memory Size2304 : 144 : 32
Shaders/TMUs/ROPs256 Bit
Memory Bus256 GB/s
BandwidthAMD Radeon RX 580X
Techinical Specs
Overview
Manufacturer
amd
Release Date
2018
Launch Price
$
GPU Name
Polaris 20
GPU Varient
Polaris 20 XTX (215-0910038)
Architecture
GCN 4.0
Foundry
GlobalFoundries
Process Size
14 nm
Transistors
5700 mil
Perofrmance
Pixel Rate
42.88 GPixel/s
Texture Rate
256 GPixel/s
FP16 Performance
6.175 TFLOPS
FP32 Performance
6.175 TFLOPS
FP64 Performance
385.9 GFLOPS
Memory
Memory Size
8 GB
Memory Type
GDDR5
Memory Bus
256 bit
Bandwidth
256 GB/s
Features
DirectX
12
OpenGL
4.6
OpenCL
2.1
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
2304
TMUs
144
ROPs
32
RT Cores
L1 Cache
16 KB
L2 Cache
2.00 MB
Design & Requirements
Memory Size
8 GB
Length
241 mm
Width
0 mm
TDP
185 W
Required PSU
450 W
Connection Outputs
1x 8-pin
Power Connectors
1x HDMI 2.0b, 3x DisplayPort 1.4a
Simillar Performing GPUS
Radeon R9 280
2014
3 GB
GDDR5
$ 279
Radeon RX 6950 XT
2022
16 GB
GDDR6
$ 1099
Radeon RX 6600
2021
8 GB
GDDR6
$ 329
Radeon HD 7950
2012
3 GB
GDDR5
$ 449
Radeon HD 7850
2012
2 GB
GDDR5
$ 249
