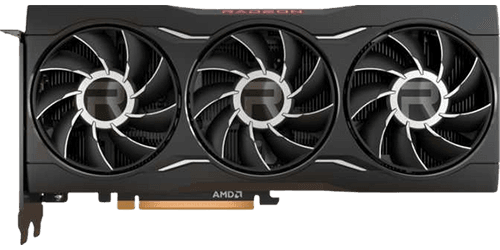

AMD Radeon RX 6950 XT
amd
Brand5120
Cores16GB GDDR6
Memory Size5120 : 320 : 128
Shaders/TMUs/ROPs256 Bit
Memory Bus576 GB/s
BandwidthAMD Radeon RX 6950 XT
Techinical Specs
Overview
Manufacturer
amd
Release Date
2022
Launch Price
$ 1099
GPU Name
Navi 21
GPU Varient
Navi 21 KXTX (215-121000289)
Architecture
RDNA 2.0
Foundry
TSMC
Process Size
7 nm
Transistors
26800 mil
Perofrmance
Pixel Rate
295.7 GPixel/s
Texture Rate
576 GPixel/s
FP16 Performance
47.31 TFLOPS
FP32 Performance
23.65 TFLOPS
FP64 Performance
1478 GFLOPS
Memory
Memory Size
16 GB
Memory Type
GDDR6
Memory Bus
256 bit
Bandwidth
576 GB/s
Features
DirectX
12.2
OpenGL
4.6
OpenCL
2.1
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
5120
TMUs
320
ROPs
128
RT Cores
80
L1 Cache
128 KB
L2 Cache
4.00 MB
Design & Requirements
Memory Size
16 GB
Length
267 mm
Width
120 mm
TDP
335 W
Required PSU
700 W
Connection Outputs
2x 8-pin
Power Connectors
1x HDMI 2.1, 2x DisplayPort 1.4a
Simillar Performing GPUS
GeForce RTX 4070 SUPER
2024
12 GB
GDDR6X
$ 599
Radeon RX 7900 XT
2022
20 GB
GDDR6
$ 899
Radeon RX 9070 XT
2025
16 GB
GDDR6
$ 599
GeForce RTX 2070 SUPER
2019
8 GB
GDDR6
$ 499
GeForce GTX 1660
2019
6 GB
GDDR5
$ 219
Performance in Benchmarks
3DMark
Geekbench 5
GFXBench
PassMark
Performance in Games
Avatar: Frontiers of Pandora From The Ashes
PRAGMATA SKETCHBOOK - DEMO
Company of Heroes 3: Endure & Defy
Of Ash and Steel
Assassin's Creed Mirage Valley of Memories
Where Winds Meet
No more benchmarks available for this GPU
Performance Review Summary
Generating AI Review...
AMD Radeon RX 6950 XT
Graphics Card
$1099
PCBench Rating in 2025
Based on comprehensive benchmarks and real-world performance data analyzed by our custom AI algorithm.
AI Summary
The AMD Radeon RX 6950 XT delivers strong 1440p and solid 4K gaming performance, especially with upscaling technologies like FSR, making it relevant for enthusiasts in 2025. Priced at $1099, it falls behind newer RDNA 3 and NVIDIA Ada Lovelace offerings in efficiency and ray tracing, making it a harder sell at launch price. It remains most competitive against peers like the Radeon RX 6900 XT and older flagships, but struggles to justify its cost versus current-gen alternatives.
Pros
- Excellent 1440p gaming performance with averages over 100 FPS in titles like Atomfall and HELLDIVERS 2 at ultra settings.
- 16GB of GDDR6 memory ensures strong performance in memory-intensive games and future-proofing for 1440p and 4K.
- FSR and Frame Gen support boost frame rates dramatically, as seen in Borderlands 4, where average FPS nearly triples at 4K with upscaling enabled.
- Outperforms its predecessor and competes well with the Radeon RX 6900 XT, offering a noticeable uplift in both synthetic and game benchmarks.
Cons
- High $1099 price tag makes it uncompetitive against newer, faster GPUs like the Radeon RX 7900 XT and GeForce RTX 4080.
- Underwhelming 4K performance in demanding titles like Senua’s Saga Hellblade II and Echoes of the End without upscaling.
- Ray tracing performance is significantly behind modern NVIDIA counterparts such as the GeForce RTX 4070 series.
- Higher power consumption and heat output compared to newer architectures, limiting efficiency.
