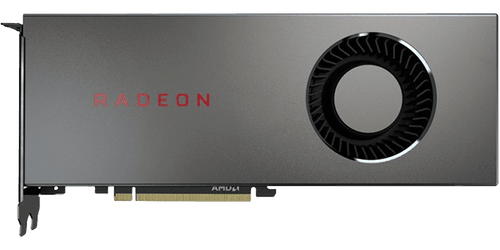

AMD Radeon RX 5700
amd
Brand2304
Cores8GB GDDR6
Memory Size2304 : 144 : 64
Shaders/TMUs/ROPs256 Bit
Memory Bus448 GB/s
BandwidthAMD Radeon RX 5700
Techinical Specs
Overview
Manufacturer
amd
Release Date
2019
Launch Price
$ 349
GPU Name
Navi 10
GPU Varient
Navi 10 XL (215-0917220)
Architecture
RDNA 1.0
Foundry
TSMC
Process Size
7 nm
Transistors
10300 mil
Perofrmance
Pixel Rate
110.4 GPixel/s
Texture Rate
448 GPixel/s
FP16 Performance
15.9 TFLOPS
FP32 Performance
7.949 TFLOPS
FP64 Performance
496.8 GFLOPS
Memory
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
256 bit
Bandwidth
448 GB/s
Features
DirectX
12.1
OpenGL
4.6
OpenCL
2.1
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
2304
TMUs
144
ROPs
64
RT Cores
L1 Cache
KB
L2 Cache
4.00 MB
Design & Requirements
Memory Size
8 GB
Length
268 mm
Width
111 mm
TDP
180 W
Required PSU
450 W
Connection Outputs
1x 6-pin + 1x 8-pin
Power Connectors
1x HDMI 2.0b, 3x DisplayPort 1.4a
Simillar Performing GPUS
Radeon HD 7770 GHz Edition
2012
1 GB
GDDR5
$ 159
GeForce RTX 4060
2023
8 GB
GDDR6
$ 299
Radeon R9 290X
2013
4 GB
GDDR5
$ 549
Radeon RX 6700 XT
2021
12 GB
GDDR6
$ 479
Radeon R9 290
2013
4 GB
GDDR5
$ 399
Performance in Benchmarks
3DMark
Geekbench 5
GFXBench
PassMark
Performance in Games
Arma Reforger
Baldur's Gate 3
Arcadegeddon
Tom Clancy’s Rainbow Six® Extraction
Far Cry® 6
Evil Dead: The Game
No more benchmarks available for this GPU
