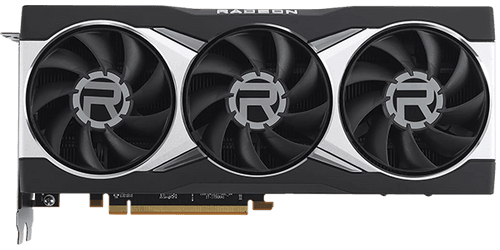

AMD Radeon RX 6800
amd
Brand3840
Cores16GB GDDR6
Memory Size3840 : 240 : 96
Shaders/TMUs/ROPs256 Bit
Memory Bus512 GB/s
BandwidthBest Deals
AMD Radeon RX 6800
Techinical Specs
Overview
Manufacturer
amd
Release Date
2020
Launch Price
$ 579
GPU Name
Navi 21
GPU Varient
Navi 21 XL (215-121000187)
Architecture
RDNA 2.0
Foundry
TSMC
Process Size
7 nm
Transistors
26800 mil
Performace
Pixel Rate
202.1 GPixel/s
Texture Rate
512 GPixel/s
FP16 Performance
32.33 TFLOPS
FP32 Performance
16.17 TFLOPS
FP64 Performance
1010 GFLOPS
Memory
Memory Size
16 GB
Memory Type
GDDR6
Memory Bus
256 bit
Bandwidth
512 GB/s
Features
DirectX
12.2
OpenGL
4.6
OpenCL
2.1
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
3840
TMUs
240
ROPs
96
RT Cores
60
L1 Cache
128 KB
L2 Cache
4.00 MB
Design & Requirements
Memory Size
16 GB
Length
267 mm
Width
120 mm
TDP
250 W
Required PSU
600 W
Connection Outputs
2x 8-pin
Power Connectors
1x HDMI 2.1, 2x DisplayPort 1.4a, 1x USB Type-C
