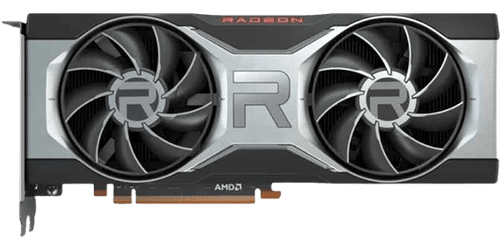

AMD Radeon RX 6700 XT
amd
Brand2560
Cores12GB GDDR6
Memory Size2560 : 160 : 64
Shaders/TMUs/ROPs192 Bit
Memory Bus384 GB/s
BandwidthAMD Radeon RX 6700 XT
Techinical Specs
Overview
Manufacturer
amd
Release Date
2021
Launch Price
$ 479
GPU Name
Navi 22
GPU Varient
Navi 22 XT (215-127000006)
Architecture
RDNA 2.0
Foundry
TSMC
Process Size
7 nm
Transistors
17200 mil
Perofrmance
Pixel Rate
165.2 GPixel/s
Texture Rate
384 GPixel/s
FP16 Performance
26.43 TFLOPS
FP32 Performance
13.21 TFLOPS
FP64 Performance
825.9 GFLOPS
Memory
Memory Size
12 GB
Memory Type
GDDR6
Memory Bus
192 bit
Bandwidth
384 GB/s
Features
DirectX
12.2
OpenGL
4.6
OpenCL
2.1
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
2560
TMUs
160
ROPs
64
RT Cores
40
L1 Cache
128 KB
L2 Cache
3.00 MB
Design & Requirements
Memory Size
12 GB
Length
267 mm
Width
110 mm
TDP
230 W
Required PSU
550 W
Connection Outputs
1x 6-pin + 1x 8-pin
Power Connectors
1x HDMI 2.1, 3x DisplayPort 1.4a
Simillar Performing GPUS
GeForce RTX 4060
2023
8 GB
GDDR6
$ 299
GeForce RTX 3060 Ti
2020
8 GB
GDDR6
$ 399
Radeon RX 7600 XT
2024
16 GB
GDDR6
$ 329
GeForce RTX 3080
2020
10 GB
GDDR6X
$ 699
GeForce RTX 2060 12 GB
2021
12 GB
GDDR6
N/A
Performance in Benchmarks
3DMark
Geekbench 5
GFXBench
PassMark
Performance in Games
Europa Universalis V
ARC Raiders
The Outer Worlds 2
Jurassic World Evolution 3
Vampire The Masquerade - Bloodlines 2
Painkiller Demo
No more benchmarks available for this GPU
Performance Review Summary
Generating AI Review...
AMD Radeon RX 6700 XT
Graphics Card
$479
PCBench Rating in 2025
Based on comprehensive benchmarks and real-world performance data analyzed by our custom AI algorithm.
AI Summary
The AMD Radeon RX 6700 XT remains a strong **1440p gaming contender** in 2025, delivering solid performance in modern titles at ultra settings with consistent frame rates. Its 12GB of GDDR6 memory provides excellent headroom for demanding games, and features like FSR help boost performance in ray-traced scenarios. Priced at $479, it offers better value than higher-end cards like the Radeon RX 6800 while outperforming budget options like the Radeon RX 6600.
Pros
- Delivers **consistent 1440p ultra performance** in most modern games, averaging 60+ FPS in titles like Resident Evil 4 and Sniper Ghost Warrior Contracts 2.
- Equipped with **12GB of GDDR6 memory**, providing strong future-proofing and texture handling at higher resolutions.
- Excellent value for 1440p gaming, outperforming similarly priced competitors like the GeForce RTX 3060 12 GB in rasterization performance.
- Supports AMD FSR, which significantly improves ray tracing performance in games like HITMAN 3 - Deluxe Pack, boosting FPS by up to 33% in quality mode.
Cons
- Struggles with **ray tracing-heavy titles** at higher resolutions, delivering sub-30 FPS in The Callisto Protocol™ and Marvel's Guardians of the Galaxy at 1440p.
- Performance at **4K is limited**, averaging below 40 FPS in most demanding games, making it unsuitable for native 2160p gaming.
- Power consumption and thermals are higher than newer RDNA 3 alternatives, making the Radeon RX 7700 XT a more efficient upgrade option in 2025.
