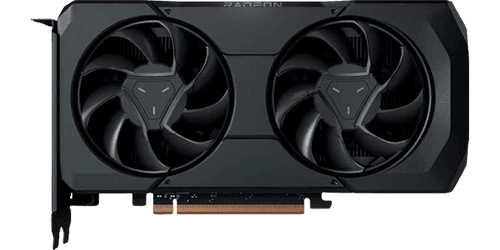

AMD Radeon RX 7600 XT
amd
Brand2048
Cores16GB GDDR6
Memory Size2048 : 128 : 64
Shaders/TMUs/ROPs128 Bit
Memory Bus288 GB/s
BandwidthAMD Radeon RX 7600 XT
Techinical Specs
Overview
Manufacturer
amd
Release Date
2024
Launch Price
$ 329
GPU Name
Navi 33
GPU Varient
Navi 33 XT (215-163000047)
Architecture
RDNA 3.0
Foundry
TSMC
Process Size
6 nm
Transistors
13300 mil
Perofrmance
Pixel Rate
176.3 GPixel/s
Texture Rate
288 GPixel/s
FP16 Performance
45.14 TFLOPS
FP32 Performance
22.57 TFLOPS
FP64 Performance
705.3 GFLOPS
Memory
Memory Size
16 GB
Memory Type
GDDR6
Memory Bus
128 bit
Bandwidth
288 GB/s
Features
DirectX
12.2
OpenGL
4.6
OpenCL
2.2
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
2048
TMUs
128
ROPs
64
RT Cores
32
L1 Cache
128 KB
L2 Cache
2.00 MB
Design & Requirements
Memory Size
16 GB
Length
204 mm
Width
115 mm
TDP
190 W
Required PSU
450 W
Connection Outputs
1x 8-pin
Power Connectors
1x HDMI 2.1a, 3x DisplayPort 2.1
Simillar Performing GPUS
Radeon RX 6700 XT
2021
12 GB
GDDR6
$ 479
Radeon RX 6800 XT
2020
16 GB
GDDR6
$ 649
GeForce RTX 4060 Ti
2023
8 GB
GDDR6
$ 499
Radeon RX 5700 XT
2019
8 GB
GDDR6
$ 399
GeForce GTX 1060 6 GB
2016
6 GB
GDDR5
$ 299
Performance in Benchmarks
3DMark
Geekbench 5
GFXBench
PassMark
Performance in Games
Dying Light The Beast
Borderlands 4
Mafia The Old Country
Cyberpunk 2077
No more benchmarks available for this GPU
Performance Review Summary
Generating AI Review...
AMD Radeon RX 7600 XT
Graphics Card
$329
PCBench Rating in 2025
Based on comprehensive benchmarks and real-world performance data analyzed by our custom AI algorithm.
AI Summary
The AMD Radeon RX 7600 XT delivers solid 1080p gaming performance with a generous 16GB VRAM buffer, making it a competent choice for modern titles at high settings. While it underperforms in demanding 1440p and ray-traced workloads like Cyberpunk 2077, it holds up well against peers such as the GeForce RTX 4060 and offers better value than the similarly priced Radeon RX 6600.
Pros
- Excellent VRAM advantage with 16GB of GDDR6 memory, beneficial for future-proofing and texture-heavy games
- Competitive 1080p performance, achieving 35 FPS average in Mafia The Old Country
- Matches the price of the GeForce RTX 3060 12 GB while offering more memory and better benchmark scores
- Efficient power use for its class, typical of the RDNA 3 architecture
Cons
- Struggles with playable frame rates in demanding titles at 1440p, averaging only 10 FPS in Cyberpunk 2077 with RTX ON
- Significantly lower 3DMark score compared to previous-gen AMD mid-range cards like the Radeon RX 6700 XT
- Minimal performance uplift over the cheaper Radeon RX 7600 despite $60 higher price
- Poor 4K performance, delivering only 4 FPS average in Cyberpunk 2077 at 2160p
