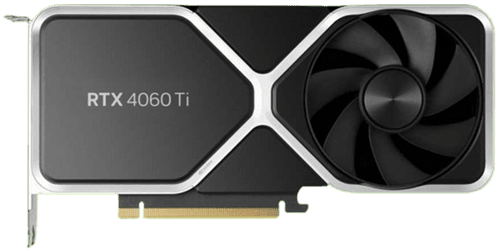

NVIDIA GeForce RTX 4060 Ti
Techinical Specs
Overview
Manufacturer
nvidia
Release Date
2023
Launch Price
$ 499
GPU Name
AD106
GPU Varient
AD106-351-A1
Architecture
Ada Lovelace
Foundry
TSMC
Process Size
5 nm
Transistors
22900 mil
Perofrmance
Pixel Rate
121.7 GPixel/s
Texture Rate
288 GPixel/s
FP16 Performance
22.06 TFLOPS
FP32 Performance
22.06 TFLOPS
FP64 Performance
344.8 GFLOPS
Memory
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Bandwidth
288 GB/s
Features
DirectX
12.2
OpenGL
4.6
OpenCL
3
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
4352
TMUs
136
ROPs
48
RT Cores
34
L1 Cache
128 KB
L2 Cache
32.00 MB
Design & Requirements
Memory Size
8 GB
Length
240 mm
Width
111 mm
TDP
165 W
Required PSU
450 W
Connection Outputs
1x 16-pin
Power Connectors
1x HDMI 2.1, 3x DisplayPort 1.4a
Simillar Performing GPUS
GeForce RTX 3080
2020
10 GB
GDDR6X
$ 699
GeForce RTX 3060 Ti
2020
8 GB
GDDR6
$ 399
GeForce RTX 2070 SUPER
2019
8 GB
GDDR6
$ 499
Radeon RX 6600
2021
8 GB
GDDR6
$ 329
Radeon RX 7600 XT
2024
16 GB
GDDR6
$ 329
Performance in Benchmarks
3DMark
Geekbench 5
GFXBench
PassMark
Performance in Games
Battlefield 6
Dying Light The Beast
Borderlands 4
METAL GEAR SOLID Δ SNAKE EATER
Echoes of the End
Mafia The Old Country
No more benchmarks available for this GPU
Performance Review Summary
Generating AI Review...
NVIDIA GeForce RTX 4060 Ti
Graphics Card
$299.99
PCBench Rating in 2025
Based on comprehensive benchmarks and real-world performance data analyzed by our custom AI algorithm.
AI Summary
The GeForce RTX 4060 Ti delivers solid 1080p/1440p gaming, hitting 120+ FPS in titles such as ARMORED CORE VI and maintaining 60‑plus FPS in Starfield with DLSS enabled. Its 8GB GDDR6, competitive $499 price, and Passmark of 22,720 make it a strong mid‑tier option, though it falls short of higher‑tier cards for 4K or future VRAM‑heavy games.
Pros
- Consistent 1080p and 1440p performance, delivering 120+ FPS in demanding titles such as ARMORED CORE VI
- DLSS and Frame Generation boost frame rates, raising Starfield to 61 FPS @1080p ultra quality
- Competitive price of $499 gives a solid mid‑tier option, matching the performance of GeForce RTX 3070 in many games with slightly better efficiency
- 8GB GDDR6 memory is adequate for current 1080p/1440p titles and future releases
- High passmark and 3DMark scores place it above older mid‑range cards such as GeForce RTX 3060
Cons
- Lacks true 4K viability – Trepang2 tops 40 FPS at 2160p ultra
- Limited VRAM can bottleneck newer AAA titles that demand >8GB, reducing longevity
- Performance gap vs GeForce RTX 3070 and higher‑tier cards like GeForce RTX 4070
- Some games, such as Atomic Heart, see drastic drops when RTX is enabled, showing limited ray tracing capability
- Relatively high power draw for mid‑range (around 200W), requiring robust PSU
