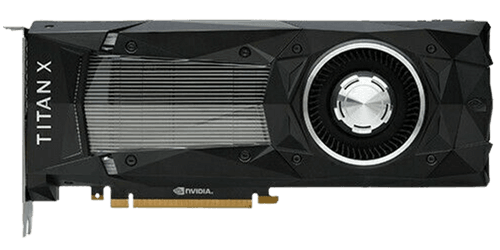

NVIDIA TITAN Xp
nvidia
Brand3840
Cores12GB GDDR5X
Memory Size3840 : 240 : 96
Shaders/TMUs/ROPs384 Bit
Memory Bus547.6 GB/s
BandwidthNVIDIA TITAN Xp
Techinical Specs
Overview
Manufacturer
nvidia
Release Date
2017
Launch Price
$ 1199
GPU Name
GP102
GPU Varient
GP102-450-A1
Architecture
Pascal
Foundry
TSMC
Process Size
16 nm
Transistors
11800 mil
Perofrmance
Pixel Rate
151.9 GPixel/s
Texture Rate
547.6 GPixel/s
FP16 Performance
189.8 TFLOPS
FP32 Performance
12.15 TFLOPS
FP64 Performance
379.7 GFLOPS
Memory
Memory Size
12 GB
Memory Type
GDDR5X
Memory Bus
384 bit
Bandwidth
547.6 GB/s
Features
DirectX
12.1
OpenGL
4.6
OpenCL
3
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
3840
TMUs
240
ROPs
96
RT Cores
L1 Cache
48 KB
L2 Cache
3.00 MB
Design & Requirements
Memory Size
12 GB
Length
267 mm
Width
112 mm
TDP
250 W
Required PSU
600 W
Connection Outputs
1x 6-pin + 1x 8-pin
Power Connectors
1x HDMI 2.0, 3x DisplayPort 1.4a
Simillar Performing GPUS
GeForce GTX 970
2014
4 GB
GDDR5
$ 329
GeForce RTX 3050 8 GB
2022
8 GB
GDDR6
$ 249
Radeon RX 480
2016
8 GB
GDDR5
$ 229
GeForce RTX 3060 12 GB
2021
12 GB
GDDR6
$ 329
GeForce GTX 1660
2019
6 GB
GDDR5
$ 219
