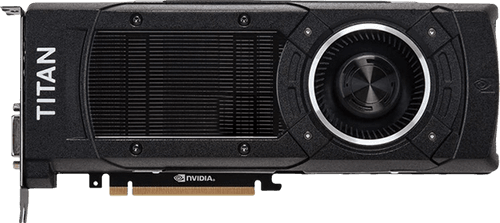

NVIDIA GeForce GTX TITAN X
nvidia
Brand3072
Cores12GB GDDR5
Memory Size3072 : 192 : 96
Shaders/TMUs/ROPs384 Bit
Memory Bus336.6 GB/s
BandwidthNVIDIA GeForce GTX TITAN X
Techinical Specs
Overview
Manufacturer
nvidia
Release Date
2015
Launch Price
$ 999
GPU Name
GM200
GPU Varient
GM200-400-A1
Architecture
Maxwell 2.0
Foundry
TSMC
Process Size
28 nm
Transistors
8000 mil
Perofrmance
Pixel Rate
104.5 GPixel/s
Texture Rate
336.6 GPixel/s
FP16 Performance
TFLOPS
FP32 Performance
6.691 TFLOPS
FP64 Performance
209.1 GFLOPS
Memory
Memory Size
12 GB
Memory Type
GDDR5
Memory Bus
384 bit
Bandwidth
336.6 GB/s
Features
DirectX
12.1
OpenGL
4.6
OpenCL
3
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
3072
TMUs
192
ROPs
96
RT Cores
L1 Cache
48 KB
L2 Cache
3.00 MB
Design & Requirements
Memory Size
12 GB
Length
267 mm
Width
111 mm
TDP
250 W
Required PSU
600 W
Connection Outputs
1x 6-pin + 1x 8-pin
Power Connectors
1x DVI, 1x HDMI 2.0, 3x DisplayPort 1.2
