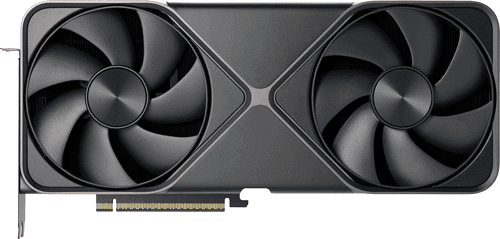

NVIDIA GeForce RTX 5090
nvidia
Brand21760
Cores32GB GDDR7
Memory Size21760 : 680 : 176
Shaders/TMUs/ROPs512 Bit
Memory Bus1790 GB/s
BandwidthNVIDIA GeForce RTX 5090
Techinical Specs
Overview
Manufacturer
nvidia
Release Date
2025
Launch Price
$ 1999
GPU Name
GB202
GPU Varient
GB202-300-A1
Architecture
Blackwell 2.0
Foundry
TSMC
Process Size
5 nm
Transistors
92200 mil
Perofrmance
Pixel Rate
423.6 GPixel/s
Texture Rate
1636.8 GPixel/s
FP16 Performance
104.8 TFLOPS
FP32 Performance
104.8 TFLOPS
FP64 Performance
1.637 GFLOPS
Memory
Memory Size
32 GB
Memory Type
GDDR7
Memory Bus
512 bit
Bandwidth
1790 GB/s
Features
DirectX
12.2
OpenGL
4.6
OpenCL
3
Vulkan
1.4
Shader Model
6.8
Render Config
Shading Units
21760
TMUs
680
ROPs
176
RT Cores
170
L1 Cache
128 KB
L2 Cache
96.00 MB
Design & Requirements
Memory Size
32 GB
Length
304 mm
Width
137 mm
TDP
575 W
Required PSU
950 W
Connection Outputs
1x 16-pin
Power Connectors
1x HDMI 2.1b, 3x DisplayPort 2.1b
