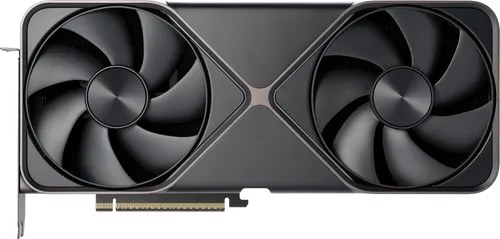

NVIDIA GeForce RTX 5080
Techinical Specs
Overview
Manufacturer
nvidia
Release Date
2025
Launch Price
$ 999
GPU Name
GB203
GPU Varient
GB203-400-A1
Architecture
Blackwell 2.0
Foundry
TSMC
Process Size
5 nm
Transistors
45600 mil
Perofrmance
Pixel Rate
293.1 GPixel/s
Texture Rate
879.3 GPixel/s
FP16 Performance
56.28 TFLOPS
FP32 Performance
56.28 TFLOPS
FP64 Performance
GFLOPS
Memory
Memory Size
16 GB
Memory Type
GDDR7
Memory Bus
256 bit
Bandwidth
960 GB/s
Features
DirectX
12.2
OpenGL
4.6
OpenCL
3
Vulkan
1.4
Shader Model
6.8
Render Config
Shading Units
10752
TMUs
336
ROPs
112
RT Cores
84
L1 Cache
128 KB
L2 Cache
64.00 MB
Design & Requirements
Memory Size
16 GB
Length
304 mm
Width
137 mm
TDP
360 W
Required PSU
750 W
Connection Outputs
1x 16-pin
Power Connectors
1x HDMI 2.1b, 3x DisplayPort 2.1b
Simillar Performing GPUS
Radeon RX 9070 XT
2025
16 GB
GDDR6
$ 599

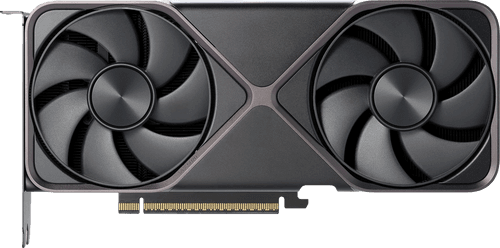

GeForce RTX 5070 Ti
2025
16 GB
GDDR7
$ 749
GeForce RTX 5070
2025
12 GB
GDDR7
$ 549
GeForce RTX 5090
2025
32 GB
GDDR7
$ 1999
GeForce RTX 4090
2022
24 GB
GDDR6X
$ 1599
Performance in Benchmarks
3DMark
Geekbench 5
GFXBench
PassMark
Performance in Games
Avatar: Frontiers of Pandora From The Ashes
PRAGMATA SKETCHBOOK - DEMO
Company of Heroes 3: Endure & Defy
Of Ash and Steel
Assassin's Creed Mirage Valley of Memories
Where Winds Meet
No more benchmarks available for this GPU
Performance Review Summary
Generating AI Review...

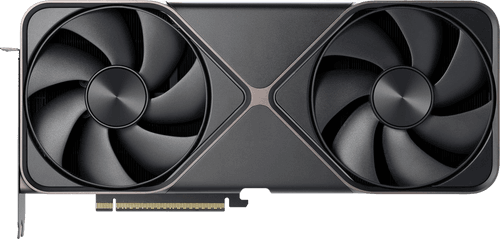

NVIDIA GeForce RTX 5080
Graphics Card
$999.99
PCBench Rating in 2025
Based on comprehensive benchmarks and real-world performance data analyzed by our custom AI algorithm.
AI Summary
The NVIDIA GeForce RTX 5080 delivers top-tier 4K gaming performance at its $999 price point, excelling in both rasterization and ray tracing. Equipped with 16GB of GDDR7 memory, it outperforms previous flagships like the GeForce RTX 4090 in raster workloads while offering competitive ray tracing performance. It's an excellent choice for enthusiasts seeking smooth 4K gaming with max settings and frame generation.
Pros
- Outstanding 1440p and 4K raster performance—averages 132 FPS in The Last of Us Part II Remastered at 4K Ultra settings.
- GDDR7 memory provides a noticeable bandwidth boost, aiding performance in memory-intensive games like Stellar Blade, where it achieves 111 FPS at 4K.
- DLSS and Frame Generation deliver up to 85% higher frame rates in titles like Assassin’s Creed Shadows, enabling smooth 4K gameplay even in demanding scenes.
Cons
- Ray tracing performance still faces limitations in extremely demanding titles like FBC Firebreak at 4K, dropping to 30 FPS with RTX ON.
- Priced at $999, it competes directly with the Radeon RX 7900 XTX, which offers more VRAM but weaker ray tracing and DLSS support.
- No significant improvement over GeForce RTX 4080 SUPER in some raster-heavy titles despite higher cost.
