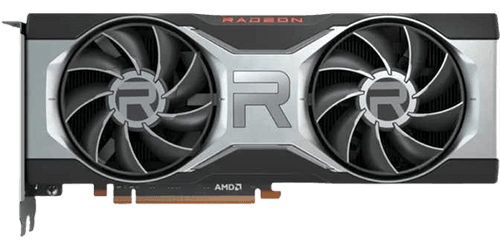

AMD Radeon RX 6700
amd
Brand2304
Cores10GB GDDR6
Memory Size2304 : 144 : 64
Shaders/TMUs/ROPs160 Bit
Memory Bus320 GB/s
BandwidthAMD Radeon RX 6700
Techinical Specs
Overview
Manufacturer
amd
Release Date
2021
Launch Price
$
GPU Name
Navi 22
GPU Varient
Navi 22 XTL
Architecture
RDNA 2.0
Foundry
TSMC
Process Size
7 nm
Transistors
17200 mil
Perofrmance
Pixel Rate
156.8 GPixel/s
Texture Rate
320 GPixel/s
FP16 Performance
22.58 TFLOPS
FP32 Performance
11.29 TFLOPS
FP64 Performance
705.6 GFLOPS
Memory
Memory Size
10 GB
Memory Type
GDDR6
Memory Bus
160 bit
Bandwidth
320 GB/s
Features
DirectX
12.2
OpenGL
4.6
OpenCL
2.1
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
2304
TMUs
144
ROPs
64
RT Cores
36
L1 Cache
128 KB
L2 Cache
3.00 MB
Design & Requirements
Memory Size
10 GB
Length
267 mm
Width
110 mm
TDP
175 W
Required PSU
450 W
Connection Outputs
1x 8-pin
Power Connectors
1x HDMI 2.1, 3x DisplayPort 1.4a
