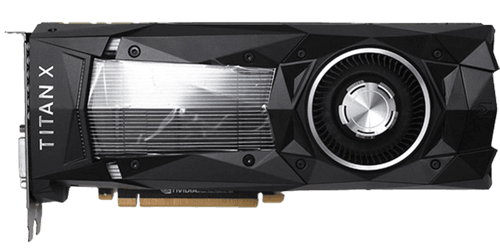

NVIDIA TITAN X Pascal
nvidia
Brand3584
Cores12GB GDDR5X
Memory Size3584 : 224 : 96
Shaders/TMUs/ROPs384 Bit
Memory Bus480.4 GB/s
BandwidthNVIDIA TITAN X Pascal
Techinical Specs
Overview
Manufacturer
nvidia
Release Date
2016
Launch Price
$ 1199
GPU Name
GP102
GPU Varient
GP102-400-A1
Architecture
Pascal
Foundry
TSMC
Process Size
16 nm
Transistors
11800 mil
Perofrmance
Pixel Rate
147 GPixel/s
Texture Rate
480.4 GPixel/s
FP16 Performance
171.5 TFLOPS
FP32 Performance
10.97 TFLOPS
FP64 Performance
342.9 GFLOPS
Memory
Memory Size
12 GB
Memory Type
GDDR5X
Memory Bus
384 bit
Bandwidth
480.4 GB/s
Features
DirectX
12.1
OpenGL
4.6
OpenCL
3
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
3584
TMUs
224
ROPs
96
RT Cores
L1 Cache
48 KB
L2 Cache
3.00 MB
Design & Requirements
Memory Size
12 GB
Length
267 mm
Width
112 mm
TDP
250 W
Required PSU
600 W
Connection Outputs
1x 6-pin + 1x 8-pin
Power Connectors
1x DVI, 1x HDMI 2.0, 3x DisplayPort 1.4a
