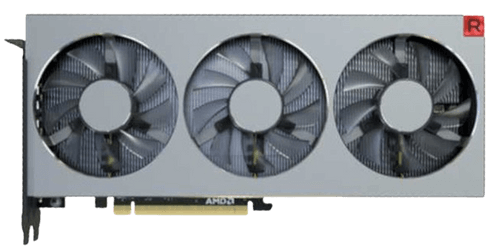

AMD Radeon VII
amd
Brand3840
Cores16GB HBM2
Memory Size3840 : 240 : 64
Shaders/TMUs/ROPs4096 Bit
Memory Bus1020 GB/s
BandwidthAMD Radeon VII
Techinical Specs
Overview
Manufacturer
amd
Release Date
2019
Launch Price
$ 699
GPU Name
Vega 20
GPU Varient
Vega 20 XT
Architecture
GCN 5.1
Foundry
TSMC
Process Size
7 nm
Transistors
13230 mil
Perofrmance
Pixel Rate
112 GPixel/s
Texture Rate
420 GPixel/s
FP16 Performance
26.88 TFLOPS
FP32 Performance
13.44 TFLOPS
FP64 Performance
3.36 GFLOPS
Memory
Memory Size
16 GB
Memory Type
HBM2
Memory Bus
4096 bit
Bandwidth
1020 GB/s
Features
DirectX
12.1
OpenGL
4.6
OpenCL
2.1
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
3840
TMUs
240
ROPs
64
RT Cores
L1 Cache
16 KB
L2 Cache
4.00 MB
Design & Requirements
Memory Size
16 GB
Length
280 mm
Width
125 mm
TDP
295 W
Required PSU
600 W
Connection Outputs
2x 8-pin
Power Connectors
1x HDMI 2.0b, 3x DisplayPort 1.4a
Simillar Performing GPUS
GeForce RTX 5070
2025
12 GB
GDDR7
$ 549
GeForce RTX 3090
2020
24 GB
GDDR6X
$ 1499
GeForce RTX 2060
2019
6 GB
GDDR6
$ 349
GeForce GTX 750
2014
1 GB
GDDR5
$ 119
GeForce GTX 1660 SUPER
2019
6 GB
GDDR6
$ 229
Performance in Benchmarks
3DMark
Geekbench 5
GFXBench
PassMark
Performance in Games
Arma Reforger
Baldur's Gate 3
Arcadegeddon
Tom Clancy’s Rainbow Six Extraction
Far Cry 6
Evil Dead The Game
No more benchmarks available for this GPU
Performance Review Summary
Generating AI Review...
AMD Radeon VII
Graphics Card
$699
PCBench Rating in 2025
Based on comprehensive benchmarks and real-world performance data analyzed by our custom AI algorithm.
AI Summary
The Radeon VII delivers respectable 3DMark 9396 and 16 GB HBM2 memory, making it suitable for demanding titles such as Gothic Playable Teaser where it averages 58 FPS at 1080p ultra. However, newer cards like the GeForce RTX 3080 far surpass its performance for the same price, and its legacy architecture limits ray‑tracing efficiency. Overall, the VII is a solid mid‑2025 mid‑range option but may not justify its cost for most gamers.
Pros
- 16 GB of ultra‑high bandwidth HBM2 memory, beneficial for memory‑intensive workloads and future‑proofing
- Strong single‑threaded performance, averaging 1.4 GHz clock, gives solid FPS in a range of 1080p/1440p titles
- Competitive 3DMark score of 9,396 for a 2019 launch price, still strong compared to many older GPUs
Cons
- Price of $699 dwarfs performance compared to newer GPUs like GeForce RTX 3080, which offers nearly double performance per dollar
- Legacy architecture, no hardware acceleration for ray tracing or DLSS, limiting future game support
- Power draw of ~300 W and high heat output, requiring robust cooling and high‑wattage PSU for stable operation
