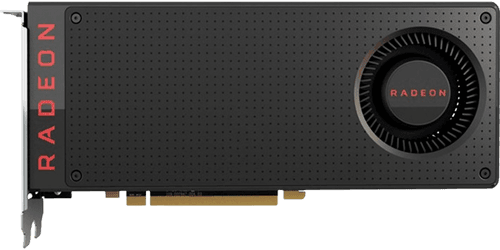

AMD Radeon RX 480
amd
Brand2304
Cores8GB GDDR5
Memory Size2304 : 144 : 32
Shaders/TMUs/ROPs256 Bit
Memory Bus256 GB/s
BandwidthAMD Radeon RX 480
Techinical Specs
Overview
Manufacturer
amd
Release Date
2016
Launch Price
$ 229
GPU Name
Ellesmere
GPU Varient
Polaris 10 XT (215-0876184)
Architecture
GCN 4.0
Foundry
GlobalFoundries
Process Size
14 nm
Transistors
5700 mil
Perofrmance
Pixel Rate
40.51 GPixel/s
Texture Rate
256 GPixel/s
FP16 Performance
5.834 TFLOPS
FP32 Performance
5.834 TFLOPS
FP64 Performance
364.6 GFLOPS
Memory
Memory Size
8 GB
Memory Type
GDDR5
Memory Bus
256 bit
Bandwidth
256 GB/s
Features
DirectX
12
OpenGL
4.6
OpenCL
2.1
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
2304
TMUs
144
ROPs
32
RT Cores
L1 Cache
16 KB
L2 Cache
2.00 MB
Design & Requirements
Memory Size
8 GB
Length
240 mm
Width
95 mm
TDP
150 W
Required PSU
450 W
Connection Outputs
1x 6-pin
Power Connectors
1x HDMI 2.0b, 3x DisplayPort 1.4a
Simillar Performing GPUS
GeForce GTX 1650
2019
4 GB
GDDR5
$ 149
Radeon RX 7600 XT
2024
16 GB
GDDR6
$ 329
GeForce RTX 2060 SUPER
2019
8 GB
GDDR6
$ 399
GeForce GTX TITAN X
2015
12 GB
GDDR5
$ 999
GeForce RTX 4070 Ti
2023
12 GB
GDDR6X
$ 799
Performance in Benchmarks
3DMark
Geekbench 5
PassMark
Performance in Games
Baldur's Gate 3
Call of Duty Black Ops Cold War
Watch Dogs Legion
Tom Clancy's Ghost Recon Breakpoint
Immortals Fenyx Rising
Assassin's Creed Valhalla
No more benchmarks available for this GPU
Performance Review Summary
Generating AI Review...
AMD Radeon RX 480
Graphics Card
$229
PCBench Rating in 2025
Based on comprehensive benchmarks and real-world performance data analyzed by our custom AI algorithm.
AI Summary
The AMD Radeon RX 480 delivers solid 1080p gaming performance for its $229 price tag, achieving playable frame rates in most modern titles at ultra settings. While it struggles at 1440p and is not suited for 2160p gaming, its 8GB of GDDR5 memory provides a buffer for more demanding games. For budget-conscious builders in 2025, it's outperformed by newer options like the Radeon RX 6600 and GeForce RTX 3060 12 GB, but may still serve as a low-cost entry to 1080p gaming on older systems.
Pros
- Delivers playable 1080p performance in modern games like TEKKEN 7 and Ori and the Will of the Wisps with 50-120 FPS at ultra settings.
- 8GB VRAM helps future-proof performance in memory-heavy titles compared to 4GB cards like the GeForce GTX 1060 3 GB.
- Competitive 3DMark score of 3980 and Passmark of 8582 place it above older cards like the Radeon R9 290 and GeForce GTX 970.
Cons
- Performance drops significantly at 1440p and is inadequate for 2160p gaming, with frame rates often below 30 FPS in demanding titles like Red Dead Redemption 2 and Assassin's Creed Valhalla.
- Bottlenecks in CPU-intensive scenarios due to older GCN 4.0 architecture, resulting in low minimum frame rates, especially in open-world games.
- Outclassed by modern budget GPUs like the Radeon RX 6600, which offers 40-50% better performance for a similar price in 2025.
