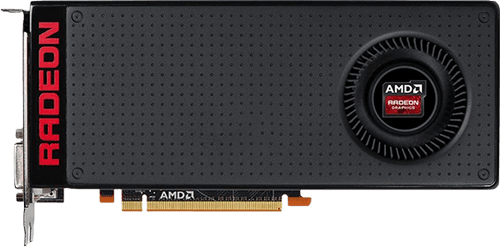

AMD Radeon R9 380X
amd
Brand2048
Cores4GB GDDR5
Memory Size2048 : 128 : 32
Shaders/TMUs/ROPs256 Bit
Memory Bus182.4 GB/s
BandwidthAMD Radeon R9 380X
Techinical Specs
Overview
Manufacturer
amd
Release Date
2015
Launch Price
$ 229
GPU Name
Antigua
GPU Varient
Antigua XT (215-0877016)
Architecture
GCN 3.0
Foundry
TSMC
Process Size
28 nm
Transistors
5000 mil
Perofrmance
Pixel Rate
31.04 GPixel/s
Texture Rate
182.4 GPixel/s
FP16 Performance
3.973 TFLOPS
FP32 Performance
3.973 TFLOPS
FP64 Performance
248.3 GFLOPS
Memory
Memory Size
4 GB
Memory Type
GDDR5
Memory Bus
256 bit
Bandwidth
182.4 GB/s
Features
DirectX
12
OpenGL
4.6
OpenCL
2.1
Vulkan
Shader Model
6.5
Render Config
Shading Units
2048
TMUs
128
ROPs
32
RT Cores
L1 Cache
16 KB
L2 Cache
0.50 MB
Design & Requirements
Memory Size
4 GB
Length
221 mm
Width
111 mm
TDP
190 W
Required PSU
450 W
Connection Outputs
2x 6-pin
Power Connectors
2x DVI, 1x HDMI 1.4a, 1x DisplayPort 1.2
