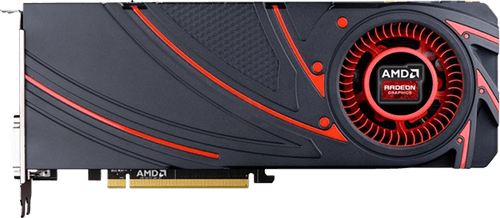

AMD Radeon R9 290
amd
Brand2560
Cores4GB GDDR5
Memory Size2560 : 160 : 64
Shaders/TMUs/ROPs512 Bit
Memory Bus320 GB/s
BandwidthAMD Radeon R9 290
Techinical Specs
Overview
Manufacturer
amd
Release Date
2013
Launch Price
$ 399
GPU Name
Hawaii
GPU Varient
Hawaii PRO (215-0852020)
Architecture
GCN 2.0
Foundry
TSMC
Process Size
28 nm
Transistors
6200 mil
Perofrmance
Pixel Rate
60.61 GPixel/s
Texture Rate
320 GPixel/s
FP16 Performance
TFLOPS
FP32 Performance
4.849 TFLOPS
FP64 Performance
606.1 GFLOPS
Memory
Memory Size
4 GB
Memory Type
GDDR5
Memory Bus
512 bit
Bandwidth
320 GB/s
Features
DirectX
12
OpenGL
4.6
OpenCL
2.1
Vulkan
Shader Model
6.5
Render Config
Shading Units
2560
TMUs
160
ROPs
64
RT Cores
L1 Cache
16 KB
L2 Cache
1.00 MB
Design & Requirements
Memory Size
4 GB
Length
275 mm
Width
109 mm
TDP
275 W
Required PSU
600 W
Connection Outputs
1x 6-pin + 1x 8-pin
Power Connectors
2x DVI, 1x HDMI 1.4a, 1x DisplayPort 1.2
