AMD Radeon HD 7750
amd
Brand512
Cores1GB GDDR5
Memory Size512 : 32 : 16
Shaders/TMUs/ROPs128 Bit
Memory Bus72 GB/s
BandwidthAMD Radeon HD 7750
Techinical Specs
Overview
Manufacturer
amd
Release Date
2012
Launch Price
$ 109
GPU Name
Cape Verde
GPU Varient
Cape Verde PRO (215-0825156)
Architecture
GCN 1.0
Foundry
TSMC
Process Size
28 nm
Transistors
1500 mil
Perofrmance
Pixel Rate
12.8 GPixel/s
Texture Rate
25.6 GPixel/s
FP16 Performance
0 TFLOPS
FP32 Performance
0.81 TFLOPS
FP64 Performance
51.2 GFLOPS
Memory
Memory Size
1 GB
Memory Type
GDDR5
Memory Bus
128 bit
Bandwidth
72 GB/s
Features
DirectX
11.1
OpenGL
4.6
OpenCL
Vulkan
Shader Model
6.5
Render Config
Shading Units
512
TMUs
32
ROPs
16
RT Cores
L1 Cache
16 KB
L2 Cache
0.25 MB
Design & Requirements
Memory Size
1 GB
Length
168 mm
Width
0 mm
TDP
55 W
Required PSU
250 W
Connection Outputs
None
Power Connectors
1x DVI, 1x HDMI 1.4a, 1x DisplayPort 1.2
Simillar Performing GPUS

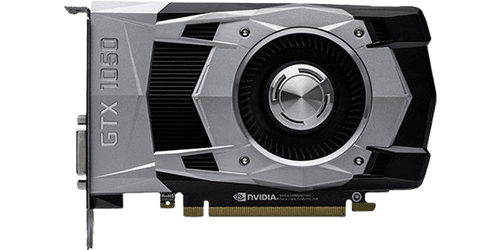

GeForce GTX 1050 Ti
2016
4 GB
GDDR5
$ 139
GeForce GT 1030
2017
2 GB
GDDR5
$ 79

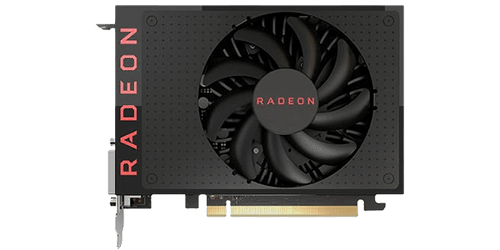

Radeon RX 460
2016
2 GB
GDDR5
N/A
Radeon RX 550
2017
2 GB
GDDR5
$ 79

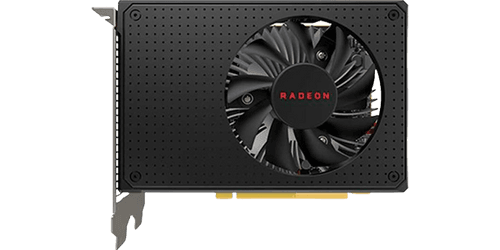

Radeon 550X
2019
2 GB
GDDR5
N/A
