intel
Brand10GB GDDR6
Memory2304
Cores380 GB/s
BandwidthIntel Arc B570
nvidia
Brand16GB GDDR7
Memory10752
Cores960 GB/s
BandwidthNVIDIA GeForce RTX 5080

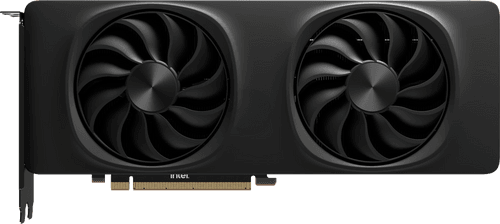

Intel Arc B570
Arc B570
$219 • Jan 2025
GeForce RTX 5080
$999 • Jan 2025

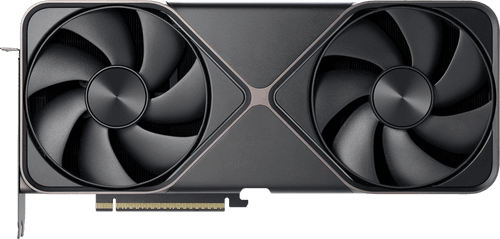

NVIDIA GeForce RTX 5080
Specs Comparison
| Specification | Intel Arc B570 | NVIDIA GeForce RTX 5080 |
|---|---|---|
| Memory Size | 10 GB | 16 GB |
| Memory Type | GDDR6 | GDDR7 |
| TDP | 150 W | 360 W |
| Core Clock | N/A | N/A |
| Boost Clock | 2500 MHz | 2617 MHz |
| Memory Bandwidth | 380 GB/s | 960 GB/s |
| Process Size | 5nm | 5nm |
| Architecture | Xe2 | Blackwell 2.0 |
| Shading Units | 2304 | 10752 |
| RT Cores | 18 | 84 |
| TMUs | 144 | 336 |
| ROPs | 80 | 112 |
| Memory Bus | 160-bit | 256-bit |
| Memory Clock | 2375 MHz | 1875 MHz |
| Pixel Rate | 200 GPixel/s | 293.1 GPixel/s |
| Texture Rate | 360 GTexel/s | 879.3 GTexel/s |
| FP32 Performance | 11.52 GFLOPS | 56.28 GFLOPS |
| L2 Cache | 18.00 MB | 64.00 MB |
| Die Size | 272 mm² | 378 mm² |
| Transistors | 19600 Million | 45600 Million |
| Required PSU | 450 W | 750 W |
| Power Connectors | 1x 8-pin | 1x 16-pin |
| Bus Interface | PCIe 4.0 x8 | PCIe 5.0 x16 |
| DirectX | 12.2 | 12.2 |
| Vulkan | 1.4 | 1.4 |
| OpenGL | 4.6 | 4.6 |
| Foundry | TSMC | TSMC |
Comparison in Synthetic Benchmarks
3DMark Time Spy
Synthetic DirectX 12 benchmark that measures GPU performance in gaming workloads
Graphics Score
Intel Arc B570
NVIDIA GeForce RTX 5080
Geekbench 6
Cross-platform benchmark that measures GPU compute performance using OpenCL and Metal APIs
OpenCL Score
Intel Arc B570
NVIDIA GeForce RTX 5080
GFXBench 5.0
Cross-platform 3D graphics benchmark suite that measures GPU performance across different APIs
Aztec Ruins High (FPS)
Intel Arc B570
NVIDIA GeForce RTX 5080
PassMark G2D
Comprehensive 2D graphics benchmark that measures GPU performance in various graphics operations
G2D Mark
Intel Arc B570
NVIDIA GeForce RTX 5080
Game Benchmarks Comparison
No game benchmarks available for this combination of GPUs yet.
We're working on collecting performance data for this combination of GPUs. Please check back later.
NVIDIA GeForce RTX 5080 Wins!
Based on 4 synthetic benchmarks
Intel Arc B570
INTEL • 10GB GDDR6
NVIDIA GeForce RTX 5080
NVIDIA • 16GB GDDR7
