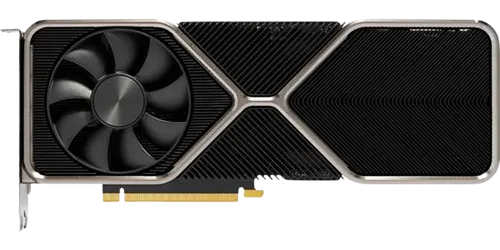

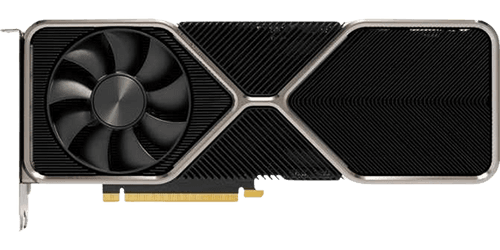

NVIDIA GeForce RTX 3080 Ti
nvidia
Brand10240
Cores12GB GDDR6X
Memory Size10240 : 320 : 112
Shaders/TMUs/ROPs384 Bit
Memory Bus912.4 GB/s
BandwidthNVIDIA GeForce RTX 3080 Ti
Techinical Specs
Overview
Manufacturer
nvidia
Release Date
2021
Launch Price
$ 1199
GPU Name
GA102
GPU Varient
GA102-225-A1
Architecture
Ampere
Foundry
Samsung
Process Size
8 nm
Transistors
28300 mil
Perofrmance
Pixel Rate
186.5 GPixel/s
Texture Rate
912.4 GPixel/s
FP16 Performance
34.1 TFLOPS
FP32 Performance
34.1 TFLOPS
FP64 Performance
532.8 GFLOPS
Memory
Memory Size
12 GB
Memory Type
GDDR6X
Memory Bus
384 bit
Bandwidth
912.4 GB/s
Features
DirectX
12.2
OpenGL
4.6
OpenCL
3
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
10240
TMUs
320
ROPs
112
RT Cores
80
L1 Cache
128 KB
L2 Cache
6.00 MB
Design & Requirements
Memory Size
12 GB
Length
285 mm
Width
112 mm
TDP
350 W
Required PSU
750 W
Connection Outputs
1x 12-pin
Power Connectors
1x HDMI 2.1, 3x DisplayPort 1.4a
Simillar Performing GPUS
GeForce RTX 5070
2025
12 GB
GDDR7
$ 549
Radeon RX 9070 XT
2025
16 GB
GDDR6
$ 599
GeForce RTX 3060 Ti
2020
8 GB
GDDR6
$ 399
GeForce RTX 4090
2022
24 GB
GDDR6X
$ 1599
GeForce RTX 4070 Ti
2023
12 GB
GDDR6X
$ 799
Performance in Benchmarks
3DMark
Geekbench 5
GFXBench
PassMark
Performance in Games
Avatar: Frontiers of Pandora From The Ashes
PRAGMATA SKETCHBOOK - DEMO
Company of Heroes 3: Endure & Defy
Of Ash and Steel
Assassin's Creed Mirage Valley of Memories
Where Winds Meet
No more benchmarks available for this GPU
Performance Review Summary
Generating AI Review...
NVIDIA GeForce RTX 3080 Ti
Graphics Card
$1199
PCBench Rating in 2025
Based on comprehensive benchmarks and real-world performance data analyzed by our custom AI algorithm.
AI Summary
The NVIDIA GeForce RTX 3080 Ti continues to impress with strong 3DMark and Passmark scores, delivering smooth 1440p and respectable 4K performance in many titles such as METAL GEAR SOLID Δ SNAKE EATER and Trepang2. Its 12 GB GDDR6X memory and solid ray‑tracing baseline make it a top choice for enthusiasts who want high frame rates without breaking the bank, especially when compared to older mid‑range GPUs like GeForce RTX 2060. However, the card’s $1199 price and high power draw are noteworthy drawbacks as newer options such as GeForce RTX 4080 and GeForce RTX 4070 Ti offer better performance for a similar cost, making it less future‑proof in 2025.
Pros
- Outstanding METAL GEAR SOLID Δ SNAKE EATER at 1440p ultra (41 fps) and solid 4K results in Trepang2 (111 fps) thanks to its 12 GB GDDR6X memory.
- High 3DMark score of 21408 and Passmark 26976 place it among the top performers in its price band, outperforming the RTX 2080 and 2070 Super in most benchmarks.
- Robust ray‑tracing support with DLSS quality providing a 2‑3× frame rate boost in titles like Bright Memory Infinite and The Callisto Protocol.
- Excellent value for 4K gaming at 30 fps in titles such as METAL GEAR SOLID Δ SNAKE EATER where it averages 24 fps at ultra.
Cons
- $1199 price tag makes it outperformed by newer GPUs like GeForce RTX 4080 and GeForce RTX 4070 Ti offering higher performance for similar or lower cost.
- High power consumption and need for a powerful PSU limit its suitability for smaller builds.
- Limited DLSS 3 support; current DLSS 2.0 only, leaving a performance gap against newer cards with DLSS 3 in upcoming titles.
- Average performance in some ray‑traced titles like SILENT HILL 2, where it averages 21 fps at ultra, indicating that real‑world ray‑tracing can still be demanding.
