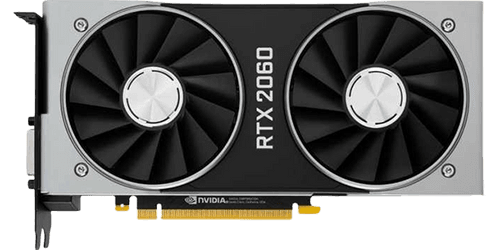

NVIDIA GeForce RTX 2060 12 GB
nvidia
Brand2176
Cores12GB GDDR6
Memory Size2176 : 136 : 48
Shaders/TMUs/ROPs192 Bit
Memory Bus336 GB/s
BandwidthNVIDIA GeForce RTX 2060 12 GB
Techinical Specs
Overview
Manufacturer
nvidia
Release Date
2021
Launch Price
$
GPU Name
TU106
GPU Varient
TU106-300-KA-A1
Architecture
Turing
Foundry
TSMC
Process Size
12 nm
Transistors
10800 mil
Perofrmance
Pixel Rate
79.2 GPixel/s
Texture Rate
336 GPixel/s
FP16 Performance
14.36 TFLOPS
FP32 Performance
7.181 TFLOPS
FP64 Performance
224.4 GFLOPS
Memory
Memory Size
12 GB
Memory Type
GDDR6
Memory Bus
192 bit
Bandwidth
336 GB/s
Features
DirectX
12.2
OpenGL
4.6
OpenCL
3
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
2176
TMUs
136
ROPs
48
RT Cores
34
L1 Cache
64 KB
L2 Cache
3.00 MB
Design & Requirements
Memory Size
12 GB
Length
229 mm
Width
113 mm
TDP
184 W
Required PSU
450 W
Connection Outputs
1x 8-pin
Power Connectors
1x DVI, 1x HDMI 2.0, 2x DisplayPort 1.4a, 1x USB Type-C
