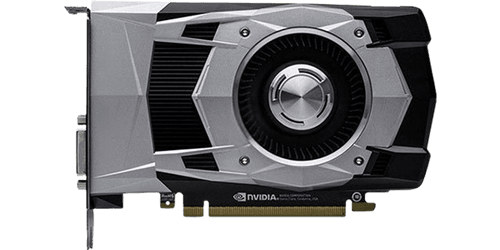

NVIDIA GeForce GTX 1630
nvidia
Brand512
Cores4GB GDDR6
Memory Size512 : 32 : 16
Shaders/TMUs/ROPs64 Bit
Memory Bus96 GB/s
BandwidthNVIDIA GeForce GTX 1630
Techinical Specs
Overview
Manufacturer
nvidia
Release Date
2022
Launch Price
$
GPU Name
TU117
GPU Varient
TU117-150-KA-A1
Architecture
Turing
Foundry
TSMC
Process Size
12 nm
Transistors
4700 mil
Perofrmance
Pixel Rate
28.56 GPixel/s
Texture Rate
96 GPixel/s
FP16 Performance
3.656 TFLOPS
FP32 Performance
1.828 TFLOPS
FP64 Performance
57.12 GFLOPS
Memory
Memory Size
4 GB
Memory Type
GDDR6
Memory Bus
64 bit
Bandwidth
96 GB/s
Features
DirectX
12.1
OpenGL
4.6
OpenCL
3
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
512
TMUs
32
ROPs
16
RT Cores
L1 Cache
64 KB
L2 Cache
1.00 MB
Design & Requirements
Memory Size
4 GB
Length
145 mm
Width
69 mm
TDP
75 W
Required PSU
250 W
Connection Outputs
None
Power Connectors
1x DVI, 1x HDMI 2.0, 1x DisplayPort 1.4a
