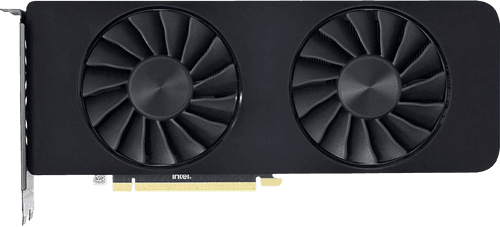

Intel Arc A750
intel
Brand3584
Cores8GB GDDR6
Memory Size3584 : 224 : 112
Shaders/TMUs/ROPs256 Bit
Memory Bus512 GB/s
BandwidthIntel Arc A750
Techinical Specs
Overview
Manufacturer
intel
Release Date
2022
Launch Price
$ 289
GPU Name
DG2-512
GPU Varient
ACM-G10
Architecture
Generation 12.7
Foundry
TSMC
Process Size
6 nm
Transistors
21700 mil
Perofrmance
Pixel Rate
268.8 GPixel/s
Texture Rate
537.6 GPixel/s
FP16 Performance
34.41 TFLOPS
FP32 Performance
17.2 TFLOPS
FP64 Performance
GFLOPS
Memory
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
256 bit
Bandwidth
512 GB/s
Features
DirectX
12.2
OpenGL
4.6
OpenCL
3
Vulkan
1.3
Shader Model
6.6
Render Config
Shading Units
3584
TMUs
224
ROPs
112
RT Cores
28
L1 Cache
KB
L2 Cache
16.00 MB
Design & Requirements
Memory Size
8 GB
Length
mm
Width
mm
TDP
225 W
Required PSU
550 W
Connection Outputs
1x 6-pin + 1x 8-pin
Power Connectors
1x HDMI 2.1, 3x DisplayPort 2.0
