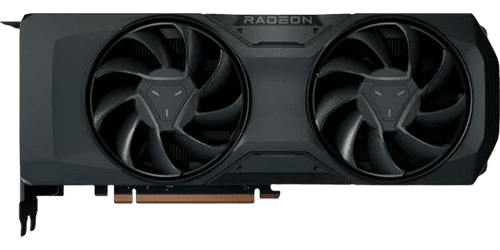

AMD Radeon RX 7700 XT
Techinical Specs
Overview
Manufacturer
amd
Release Date
2023
Launch Price
$ 449
GPU Name
Navi 32
GPU Varient
Navi 32 XL (215-180000076)
Architecture
RDNA 3.0
Foundry
TSMC
Process Size
5 nm
Transistors
28100 mil
Perofrmance
Pixel Rate
244.2 GPixel/s
Texture Rate
432 GPixel/s
FP16 Performance
70.34 TFLOPS
FP32 Performance
35.17 TFLOPS
FP64 Performance
1099 GFLOPS
Memory
Memory Size
12 GB
Memory Type
GDDR6
Memory Bus
192 bit
Bandwidth
432 GB/s
Features
DirectX
12.2
OpenGL
4.6
OpenCL
2.2
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
3456
TMUs
216
ROPs
96
RT Cores
54
L1 Cache
128 KB
L2 Cache
2.00 MB
Design & Requirements
Memory Size
12 GB
Length
267 mm
Width
135 mm
TDP
245 W
Required PSU
550 W
Connection Outputs
2x 8-pin
Power Connectors
1x HDMI 2.1a, 2x DisplayPort 2.1, 1x USB Type-C
Simillar Performing GPUS
GeForce RTX 3060 12 GB
2021
12 GB
GDDR6
$ 329
Radeon RX 9060 XT 16 GB
2025
16 GB
GDDR6
$ 349
GeForce RTX 4070
2023
12 GB
GDDR6X
$ 599
Radeon RX 7800 XT
2023
16 GB
GDDR6
$ 499
GeForce GTX 1080
2016
8 GB
GDDR5X
$ 599
Performance in Benchmarks
3DMark
Geekbench 5
GFXBench
PassMark
Performance in Games
Avatar: Frontiers of Pandora From The Ashes
PRAGMATA SKETCHBOOK - DEMO
Company of Heroes 3: Endure & Defy
Of Ash and Steel
Assassin's Creed Mirage Valley of Memories
Where Winds Meet
No more benchmarks available for this GPU
Performance Review Summary
Generating AI Review...
AMD Radeon RX 7700 XT
Graphics Card
$389.99
PCBench Rating in 2025
Based on comprehensive benchmarks and real-world performance data analyzed by our custom AI algorithm.
AI Summary
The Radeon RX 7700 XT offers strong 1080p and 1440p performance for its $449 price, delivering over 100 fps in titles like Ninja Gaiden 4 and Atomfall. With 12 GB of GDDR6, it gives good future‑proofing and beats many mid‑range competitors such as GeForce RTX 2060 SUPER, but it cannot compete with higher‑end models like the Radeon RX 6800 XT for 4K play. Overall, it is a solid choice for gamers seeking high‑end performance without a premium price tag.
Pros
- Strong benchmark numbers with 3DMark 14983 and Passmark 22460 that outpace many mid‑range cards such as GeForce RTX 2060
- Excellent 1080p/1440p performance, averaging >100 fps in Steel Seed and Of Ash and Steel
- 12 GB GDDR6 memory provides ample headroom for future titles and higher resolutions
- Competitive price relative to AMD’s Radeon RX 6800 and Nvidia’s RTX 3060
Cons
- 4K performance is limited, with Senua’s Saga Hellblade II staying below 30 fps at 1080p ultra
- Lacks dedicated ray‑tracing hardware, so advanced visual effects are unavailable compared to RTX cards
- Power draw and thermal footprint are relatively high for a card priced under $500
- Performance dips in some titles such as Hell Is Us where FPS averages around 49 at 1080p
