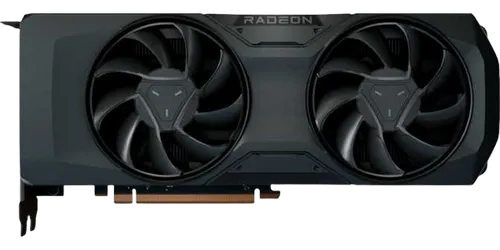

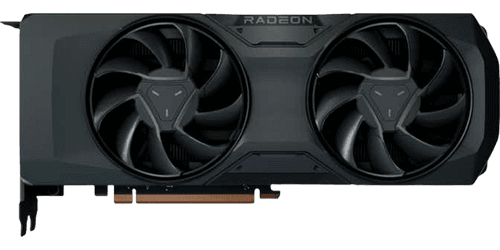

AMD Radeon RX 7800 XT
amd
Brand3840
Cores16GB GDDR6
Memory Size3840 : 240 : 96
Shaders/TMUs/ROPs256 Bit
Memory Bus624.1 GB/s
BandwidthBest Deals
AMD Radeon RX 7800 XT
Techinical Specs
Overview
Manufacturer
amd
Release Date
2023
Launch Price
$ 499
GPU Name
Navi 32
GPU Varient
Navi 32 XT (215-180000006)
Architecture
RDNA 3.0
Foundry
TSMC
Process Size
5 nm
Transistors
28100 mil
Performace
Pixel Rate
233.3 GPixel/s
Texture Rate
624.1 GPixel/s
FP16 Performance
74.65 TFLOPS
FP32 Performance
37.32 TFLOPS
FP64 Performance
1166 GFLOPS
Memory
Memory Size
16 GB
Memory Type
GDDR6
Memory Bus
256 bit
Bandwidth
624.1 GB/s
Features
DirectX
12.2
OpenGL
4.6
OpenCL
2.2
Vulkan
1.3
Shader Model
6.7
Render Config
Shading Units
3840
TMUs
240
ROPs
96
RT Cores
60
L1 Cache
128 KB
L2 Cache
4.00 MB
Design & Requirements
Memory Size
16 GB
Length
267 mm
Width
111 mm
TDP
263 W
Required PSU
600 W
Connection Outputs
2x 8-pin
Power Connectors
1x HDMI 2.1a, 3x DisplayPort 2.1
