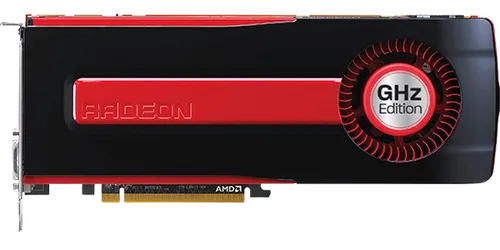

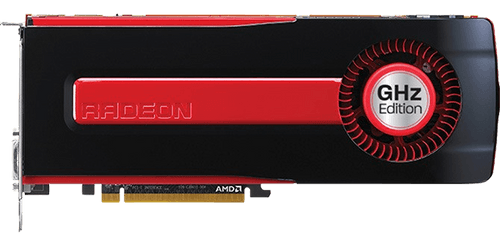

AMD Radeon HD 7970 GHz Edition
amd
Brand2048
Cores3GB GDDR5
Memory Size2048 : 128 : 32
Shaders/TMUs/ROPs384 Bit
Memory Bus288 GB/s
BandwidthAMD Radeon HD 7970 GHz Edition
Techinical Specs
Overview
Manufacturer
amd
Release Date
2012
Launch Price
$ 499
GPU Name
Tahiti
GPU Varient
Tahiti XT2 (215-0821065)
Architecture
GCN 1.0
Foundry
TSMC
Process Size
28 nm
Transistors
4313 mil
Perofrmance
Pixel Rate
33.6 GPixel/s
Texture Rate
288 GPixel/s
FP16 Performance
TFLOPS
FP32 Performance
4.301 TFLOPS
FP64 Performance
1075 GFLOPS
Memory
Memory Size
3 GB
Memory Type
GDDR5
Memory Bus
384 bit
Bandwidth
288 GB/s
Features
DirectX
11.1
OpenGL
4.6
OpenCL
Vulkan
Shader Model
Render Config
Shading Units
2048
TMUs
128
ROPs
32
RT Cores
L1 Cache
16 KB
L2 Cache
0.75 MB
Design & Requirements
Memory Size
3 GB
Length
275 mm
Width
111 mm
TDP
300 W
Required PSU
700 W
Connection Outputs
1x 6-pin + 1x 8-pin
Power Connectors
1x DVI, 1x HDMI 1.4a, 2x mini-DisplayPort 1.2
Simillar Performing GPUS
GeForce RTX 3080 Ti
2021
12 GB
GDDR6X
$ 1199
Radeon HD 7870 GHz Edition
2012
2 GB
GDDR5
$ 349
GeForce RTX 3050 8 GB
2022
8 GB
GDDR6
$ 249
GeForce RTX 3060 Ti
2020
8 GB
GDDR6
$ 399
Radeon HD 7770 GHz Edition
2012
1 GB
GDDR5
$ 159
