AMD Radeon RX 9060 XT 8 GB VS Intel Arc B580
amd
Brand8GB GDDR6
Memory2048
Cores322.3 GB/s
BandwidthRadeon RX 9060 XT 8 GB
intel
Brand12GB GDDR6
Memory2560
Cores456 GB/s
BandwidthArc B580
AMD Radeon RX 9060 XT 8 GB
Radeon RX 9060 XT 8 GB
$299 • Jun 2025

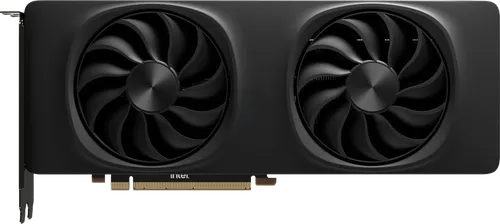

Arc B580
$249 • Dec 2024
Intel Arc B580
Specs Comparison
| Specification | AMD Radeon RX 9060 XT 8 GB | Intel Arc B580 |
|---|---|---|
| Memory Size | 8 GB | 12 GB |
| Memory Type | GDDR6 | GDDR6 |
| TDP | 150 W | 190 W |
| Core Clock | N/A | N/A |
| Boost Clock | 3130 MHz | 2670 MHz |
| Memory Bandwidth | 322.3 GB/s | 456 GB/s |
| Process Size | 4nm | 5nm |
| Architecture | RDNA 4.0 | Xe2 |
| Shading Units | 2048 | 2560 |
| RT Cores | 32 | 20 |
| TMUs | 128 | 160 |
| ROPs | 64 | 80 |
| Memory Bus | 128-bit | 192-bit |
| Memory Clock | 2518 MHz | 2375 MHz |
| Pixel Rate | 200.3 GPixel/s | 213.6 GPixel/s |
| Texture Rate | 400.6 GTexel/s | 427.2 GTexel/s |
| FP32 Performance | 25.64 GFLOPS | 13.67 GFLOPS |
| L2 Cache | 4.00 MB | 18.00 MB |
| Die Size | 199 mm² | 272 mm² |
| Transistors | 29700 Million | 19600 Million |
| Required PSU | 450 W | 450 W |
| Power Connectors | 1x 8-pin | 1x 8-pin |
| Bus Interface | PCIe 5.0 x16 | PCIe 4.0 x8 |
| DirectX | 12.2 | 12.2 |
| Vulkan | 1.3 | 1.4 |
| OpenGL | 4.6 | 4.6 |
| Foundry | TSMC | TSMC |
Comparison in Synthetic Benchmarks
3DMark Time Spy
Synthetic DirectX 12 benchmark that measures GPU performance in gaming workloads
Graphics Score
AMD Radeon RX 9060 XT 8 GB
Intel Arc B580
Geekbench 6
Cross-platform benchmark that measures GPU compute performance using OpenCL and Metal APIs
OpenCL Score
AMD Radeon RX 9060 XT 8 GB
Intel Arc B580
GFXBench 5.0
Cross-platform 3D graphics benchmark suite that measures GPU performance across different APIs
Aztec Ruins High (FPS)
AMD Radeon RX 9060 XT 8 GB
Intel Arc B580
PassMark G2D
Comprehensive 2D graphics benchmark that measures GPU performance in various graphics operations
G2D Mark
AMD Radeon RX 9060 XT 8 GB
Intel Arc B580
Game Benchmarks Comparison (8 benchmarks)
Dying Light The Beast
Borderlands 4
Battlefield 6
AMD Radeon RX 9060 XT 8 GB Wins!
Based on 8 benchmarks across 3 games
AMD Radeon RX 9060 XT 8 GB
AMD • 8GB GDDR6
Intel Arc B580
INTEL • 12GB GDDR6
