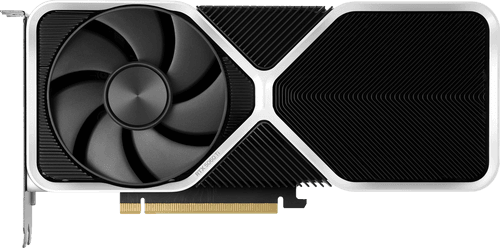

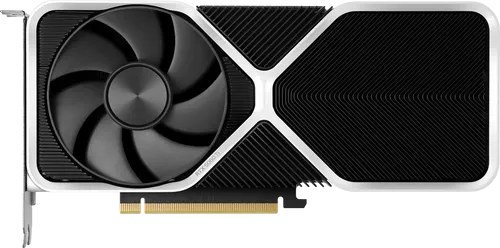

NVIDIA GeForce RTX 5060 Ti 8 GB
nvidia
Brand4608
Cores8GB GDDR7
Memory Size4608 : 144 : 48
Shaders/TMUs/ROPs128 Bit
Memory Bus448 GB/s
BandwidthNVIDIA GeForce RTX 5060 Ti 8 GB
Techinical Specs
Overview
Manufacturer
nvidia
Release Date
2025
Launch Price
$ 379
GPU Name
GB206
GPU Varient
GB206-300-A1
Architecture
Blackwell 2.0
Foundry
TSMC
Process Size
5 nm
Transistors
21900 mil
Perofrmance
Pixel Rate
123.5 GPixel/s
Texture Rate
370.4 GPixel/s
FP16 Performance
23.7 TFLOPS
FP32 Performance
23.7 TFLOPS
FP64 Performance
GFLOPS
Memory
Memory Size
8 GB
Memory Type
GDDR7
Memory Bus
128 bit
Bandwidth
448 GB/s
Features
DirectX
12.2
OpenGL
4.6
OpenCL
3
Vulkan
1.4
Shader Model
6.8
Render Config
Shading Units
4608
TMUs
144
ROPs
48
RT Cores
36
L1 Cache
128 KB
L2 Cache
32.00 MB
Design & Requirements
Memory Size
8 GB
Length
241 mm
Width
111 mm
TDP
180 W
Required PSU
450 W
Connection Outputs
1x 8-pin
Power Connectors
1x HDMI 2.1b, 3x DisplayPort 2.1b
Simillar Performing GPUS
Radeon RX 9070
2025
16 GB
GDDR6
$ 549
GeForce RTX 5080
2025
16 GB
GDDR7
$ 999
Radeon RX 9070 GRE
2025
12 GB
GDDR6
N/A
Arc B570
2025
10 GB
GDDR6
$ 219
Radeon RX 9060 XT 16 GB
2025
16 GB
GDDR6
$ 349
Performance in Benchmarks
3DMark
Performance in Games
No benchmark data available for this GPU yet.
We're working on collecting performance data for this graphics card. Please check back later.
Performance Review Summary
Generating AI Review...
NVIDIA GeForce RTX 5060 Ti 8 GB
Graphics Card
$379
PCBench Rating in 2025
Based on comprehensive benchmarks and real-world performance data analyzed by our custom AI algorithm.
AI Summary
NVIDIA’s GeForce RTX 5060 Ti 8 GB delivers a sizable generational jump with a 3DMark score of 22,599, clearly outpacing the previous $399-class GeForce RTX 3060 Ti (11,980) and matching or beating the $599 GeForce RTX 4070 (18,116) at a much lower price. At $379, it offers excellent 1440p gaming headroom and entry-level 4K playability for builders who don’t need more than 8 GB VRAM. Best suited for high-refresh 1080p and smooth 1440p gaming in 2025.
Pros
- Excellent performance per dollar: 22,599 3DMark at $379 outclasses GeForce RTX 4060 Ti (13,616) and undercuts GeForce RTX 4070 (18,116) on cost.
- Large gen-on-gen uplift vs. $399-class GeForce RTX 3060 Ti: +89% in 3DMark (11,980 → 22,599).
- Modern GDDR7 memory and 8 GB capacity provide strong 1080p/1440p performance headroom at mainstream power/price.
- Beats prior high-end Ampere/ADA midrange: surpasses GeForce RTX 3070 (14,126) and Radeon RX 6800 (14,608) in the same test.
Cons
- 8 GB VRAM may constrain some 2025 titles at max settings and 4K compared to 12–16 GB cards like Radeon RX 6700 XT (12 GB) and GeForce RTX 4070 (12 GB).
- Only a modest uplift versus the 16 GB variant: 22,599 vs. 22,876 3DMark for GeForce RTX 5060 Ti 16 GB, which may age better in VRAM-heavy games.
- No supplementary benchmark data (Geekbench/PassMark/game FPS) limits cross-workload validation compared with competitors that have broader data.
